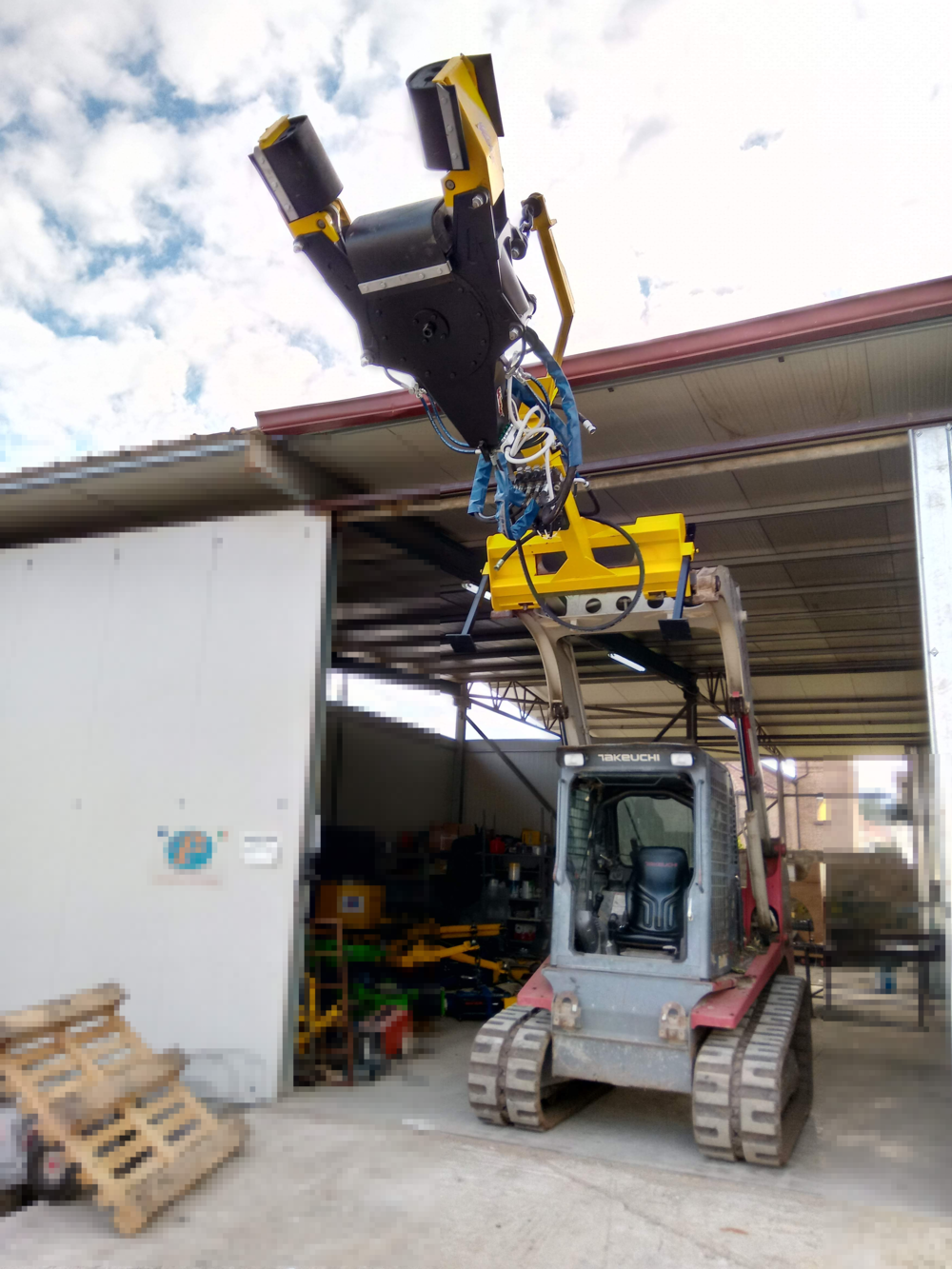

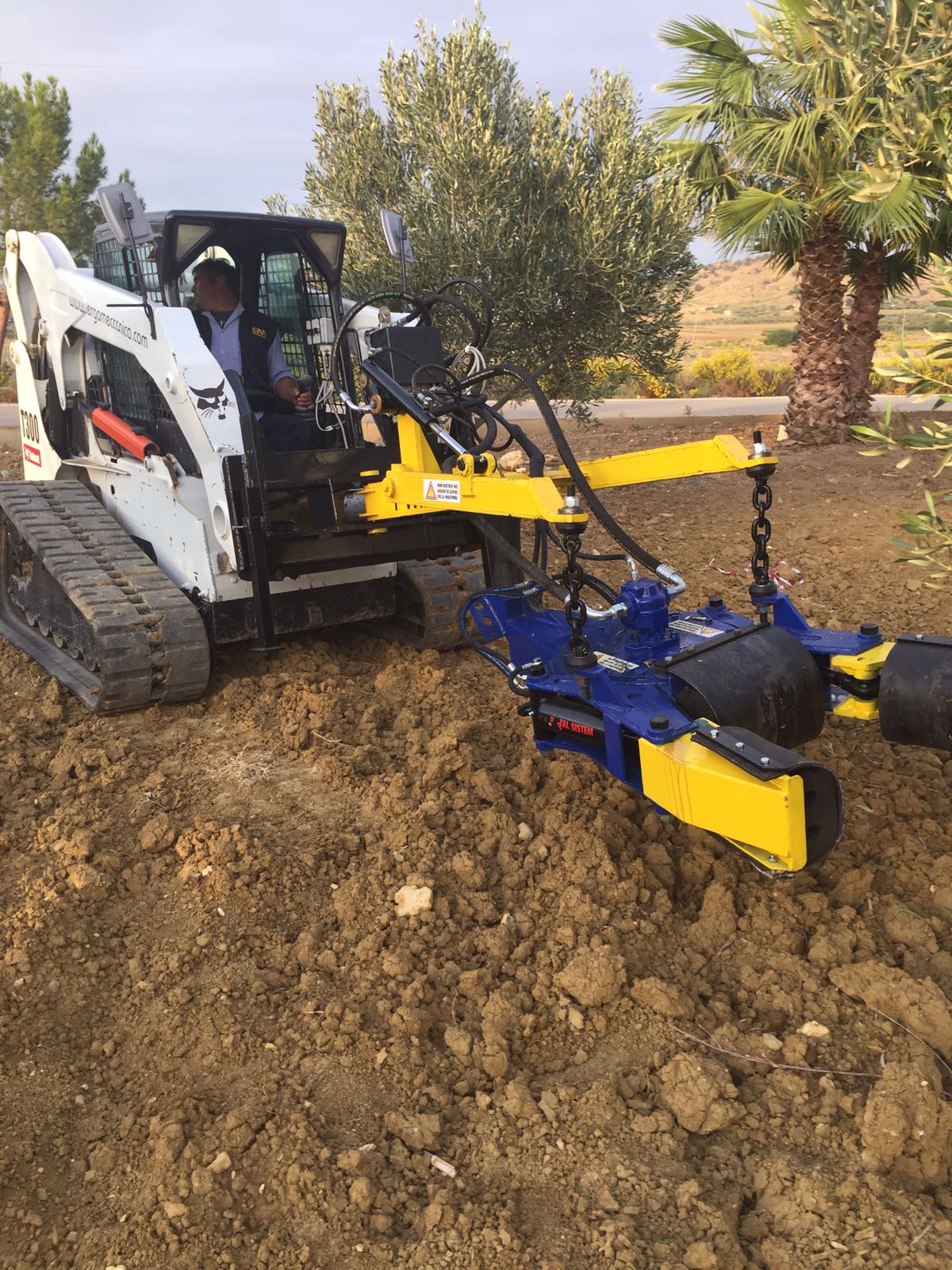

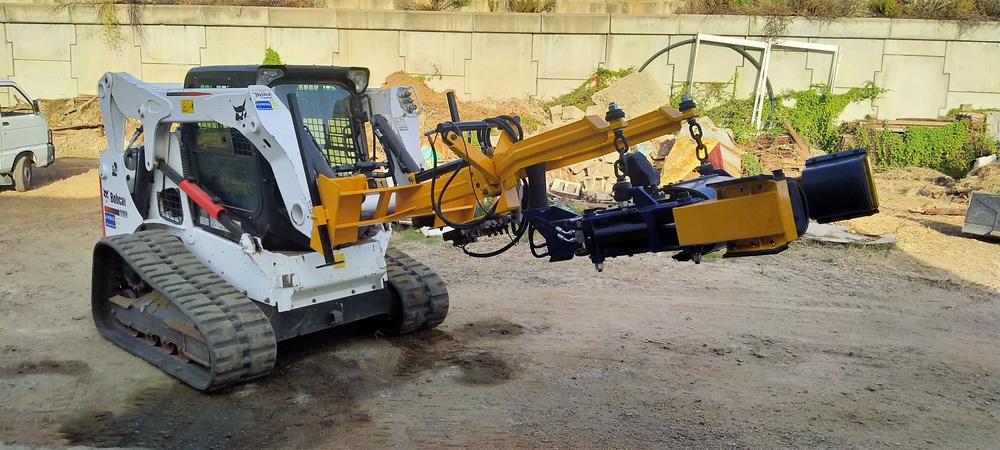

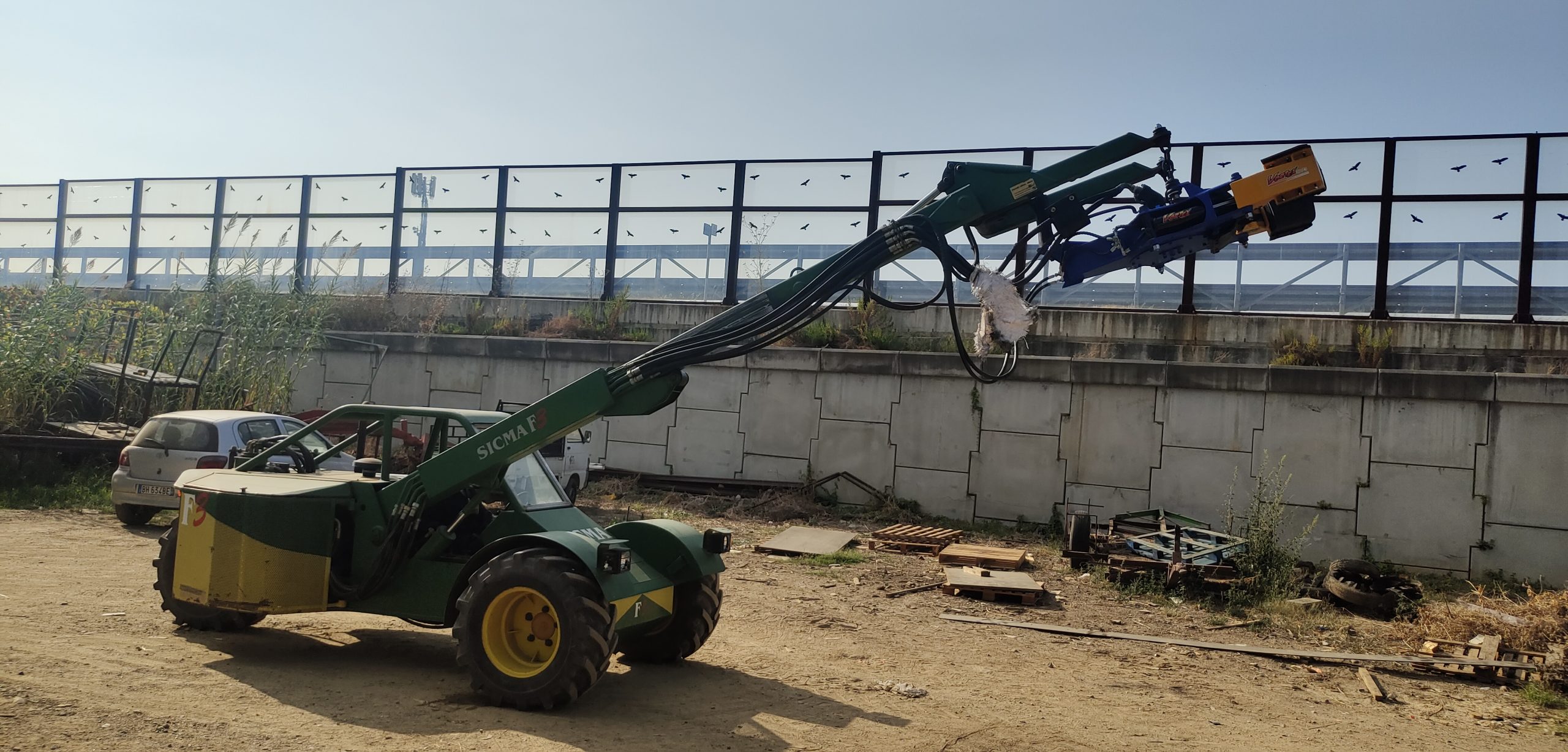

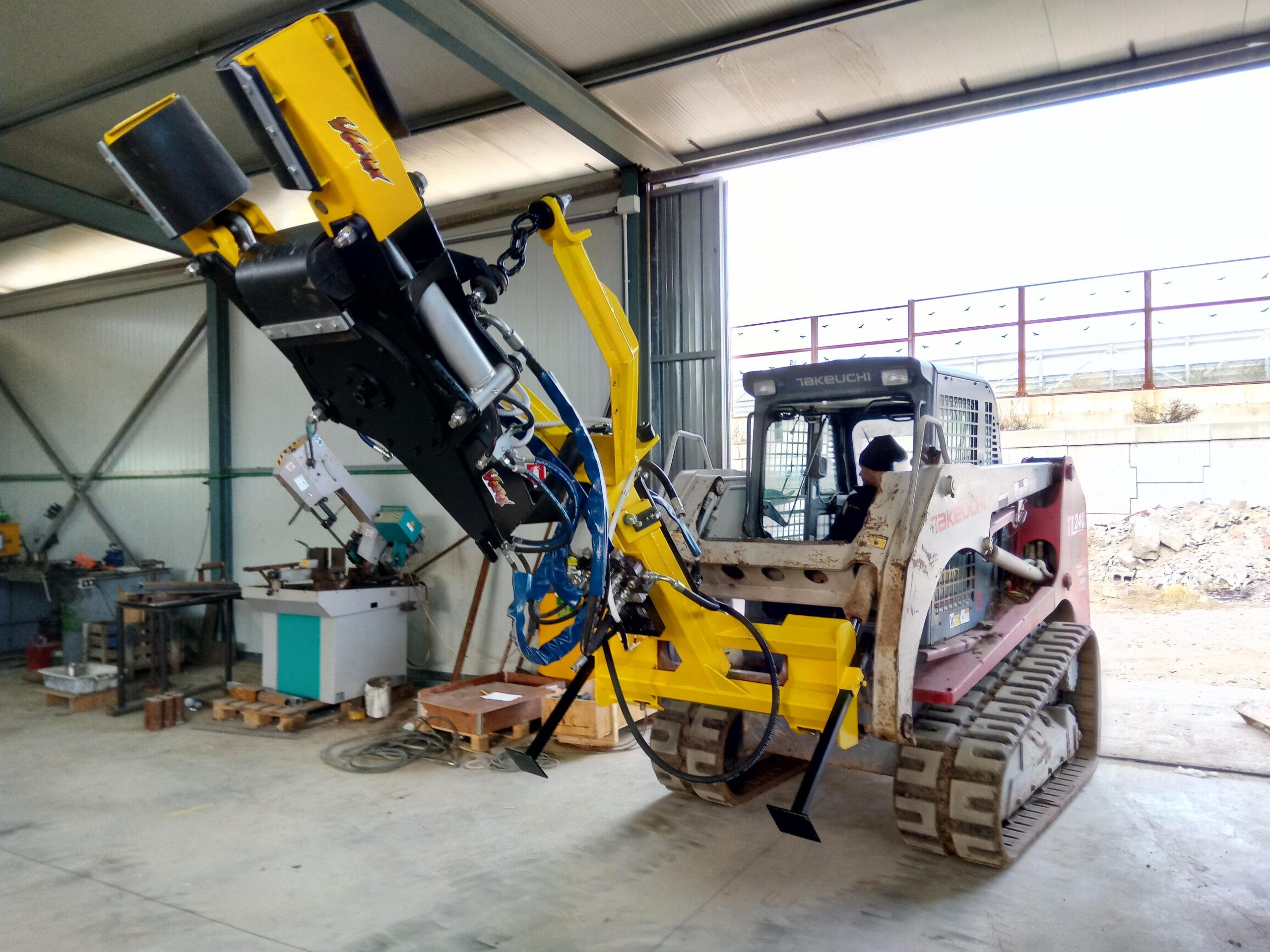

Kit T-Skid

Technical Features

  • WEIGHT 500Kg in Vortex trim

  • WEIGHT 280Kg in VortexJ trim

  • Vortex Performance Orbital Caliper

  • Full compatibility for mechanical quick coupling

  • Full hydraulic compatibility with the self-propelled vehicle (customizable setup)

  • Non-invasive wire-guided controller in the cabin for perfect control of functions

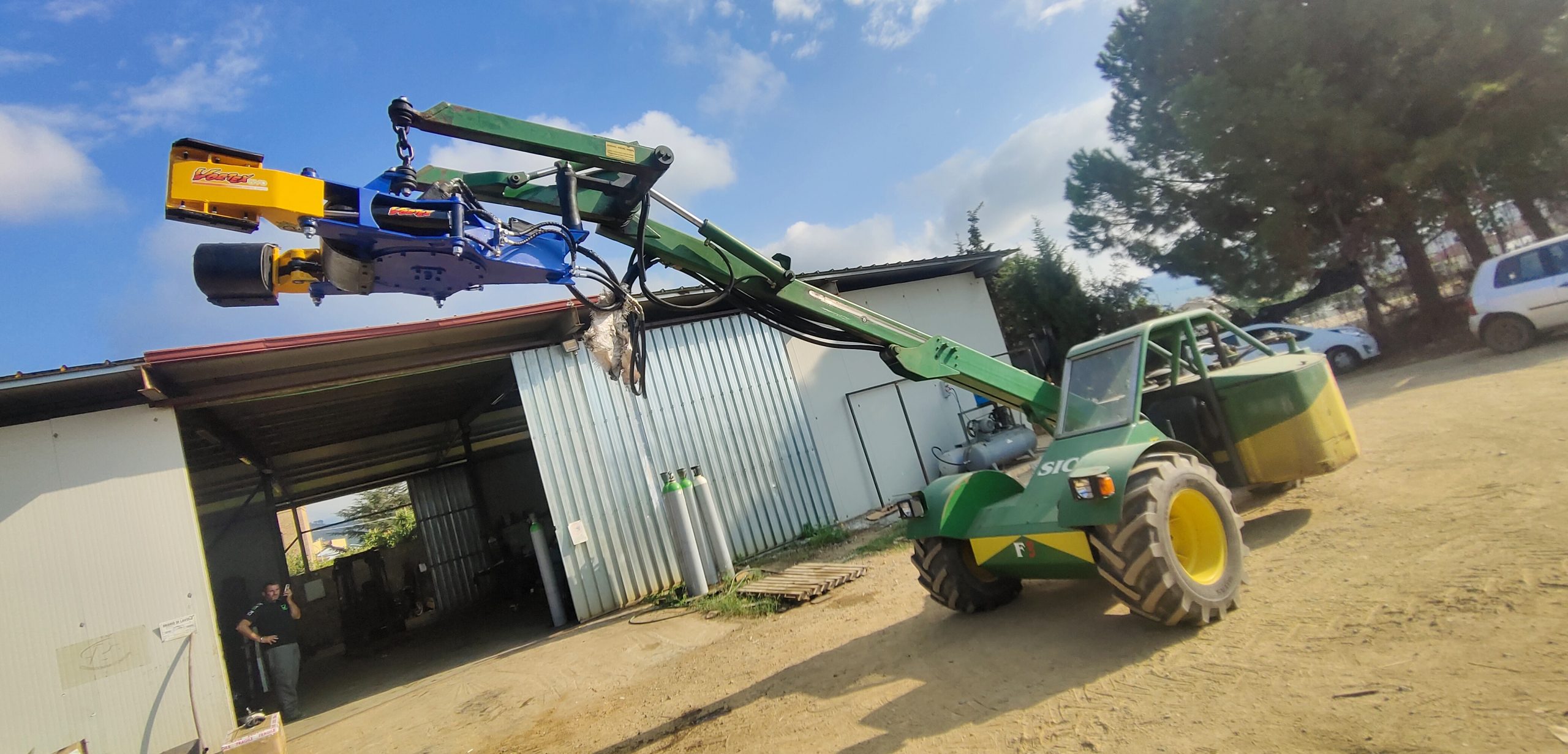

SPECIFIC APPLICATION FOR SELF-PROPELLED SKIDLOADER TYPE - MINI LOADERS - TELESCOPIC HANDLER


Gallery

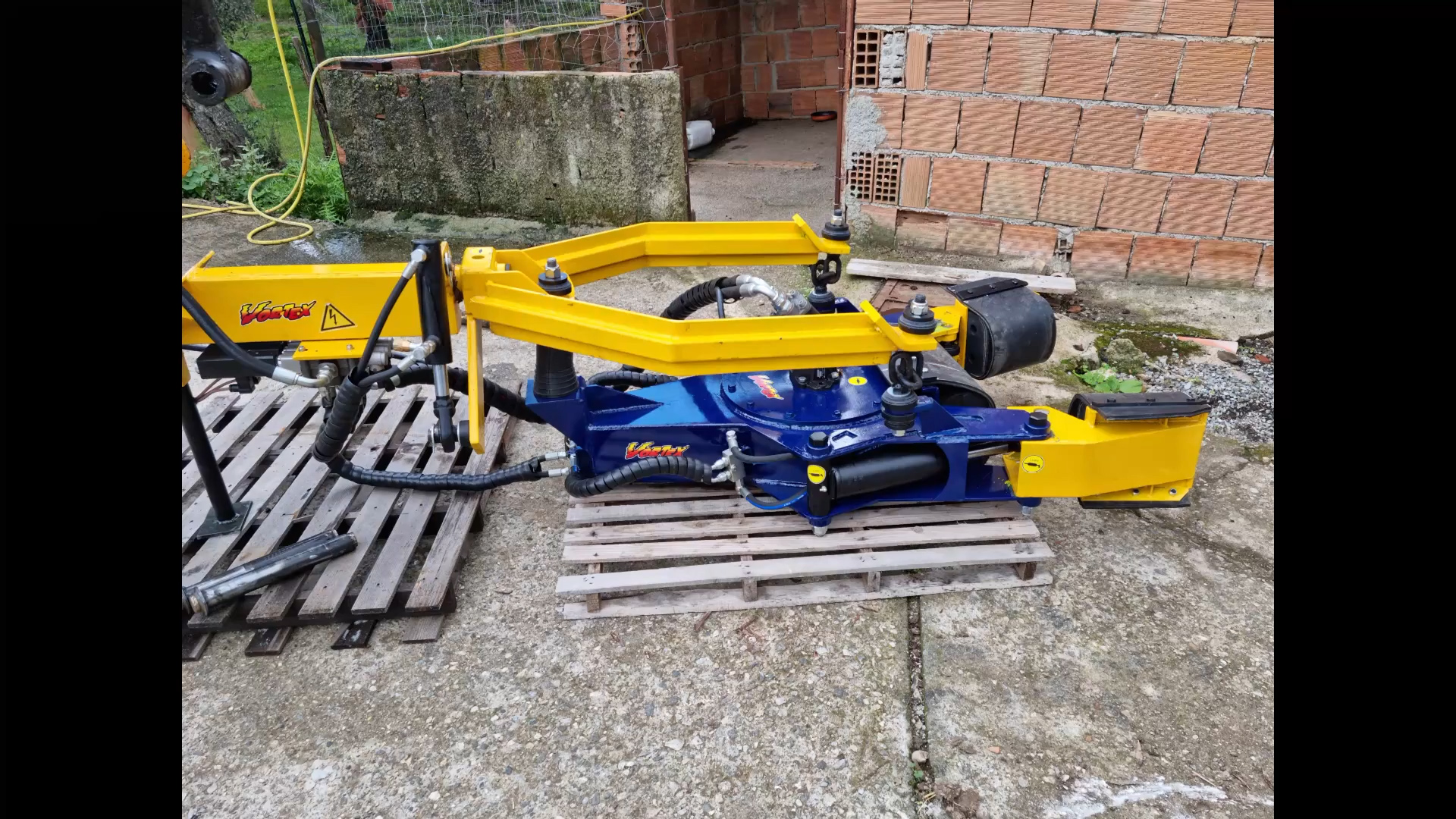

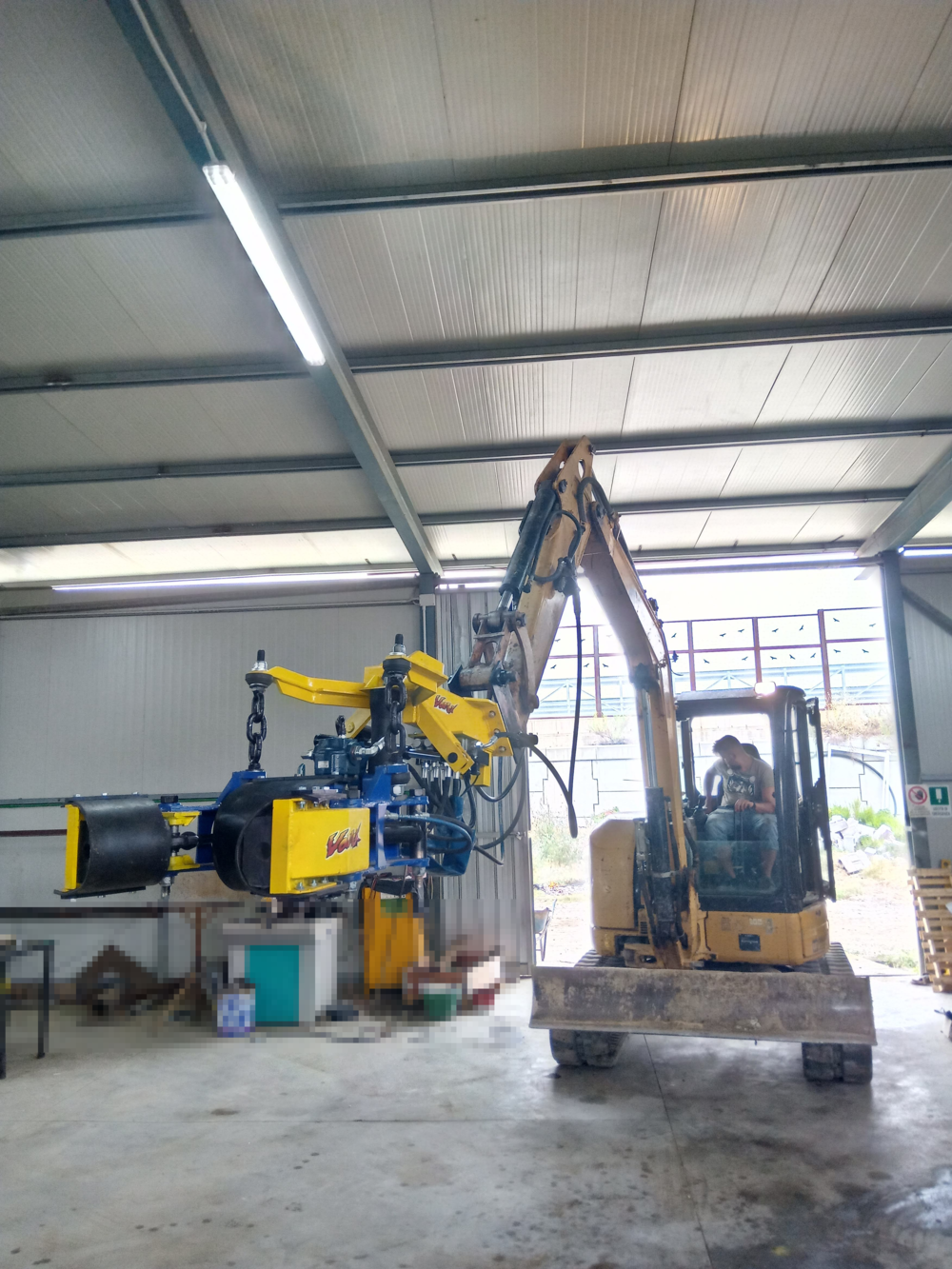

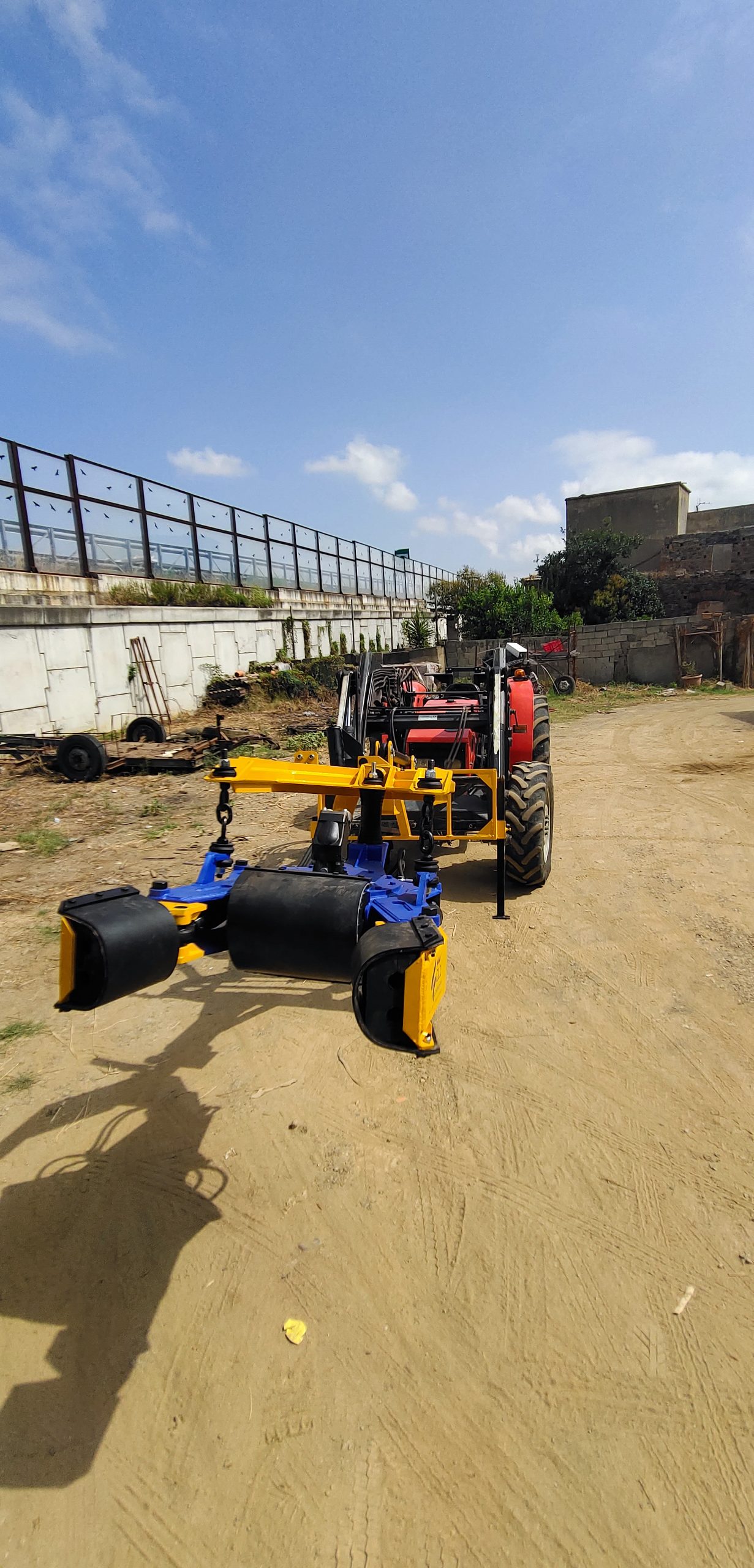

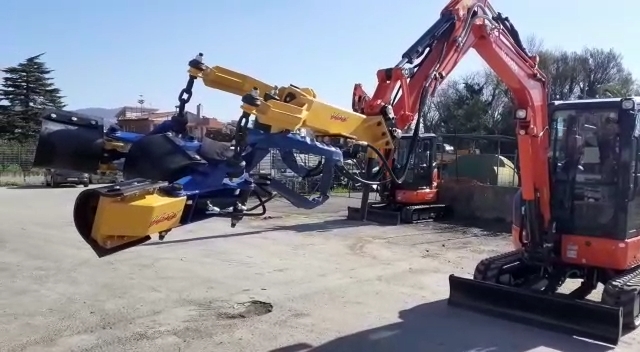

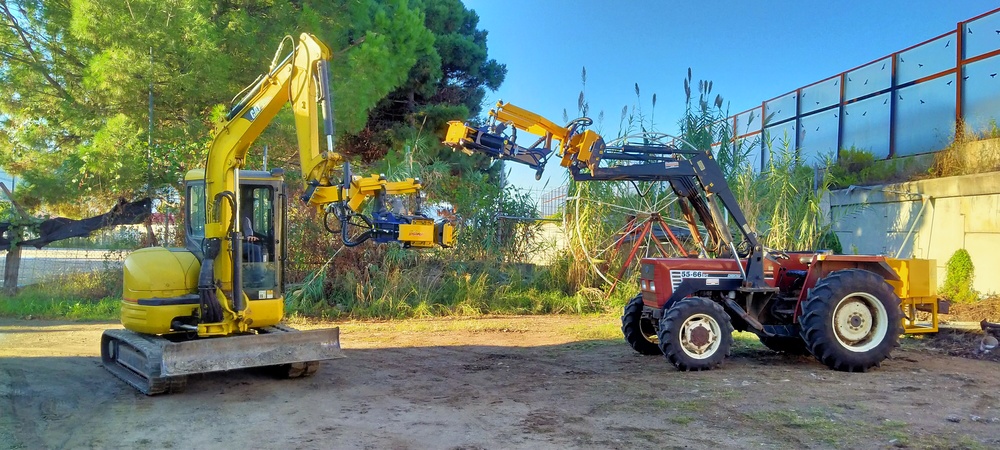

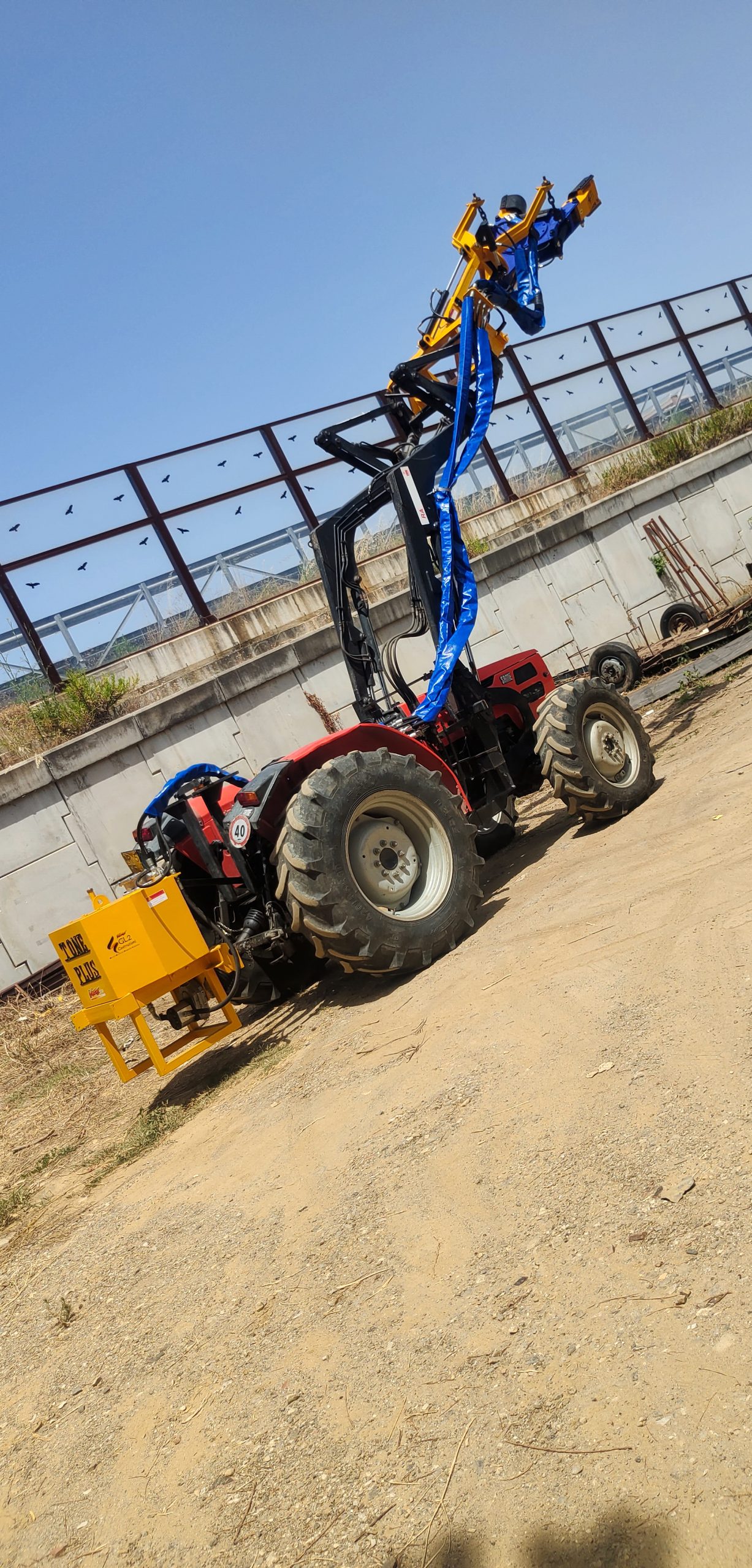

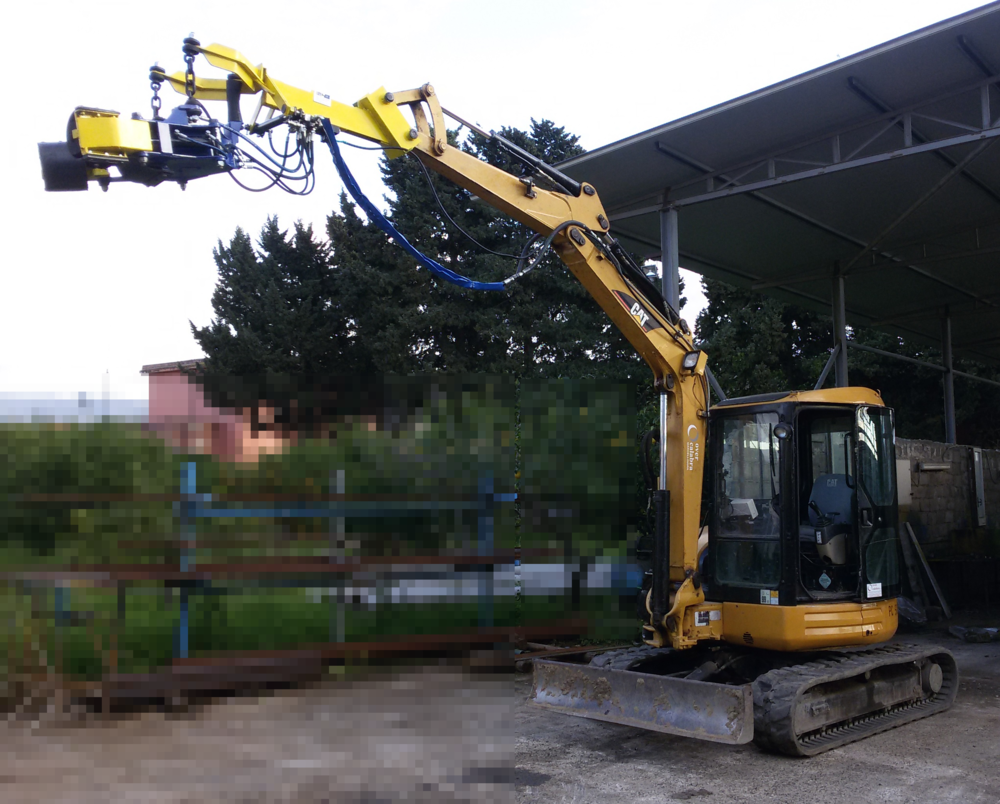

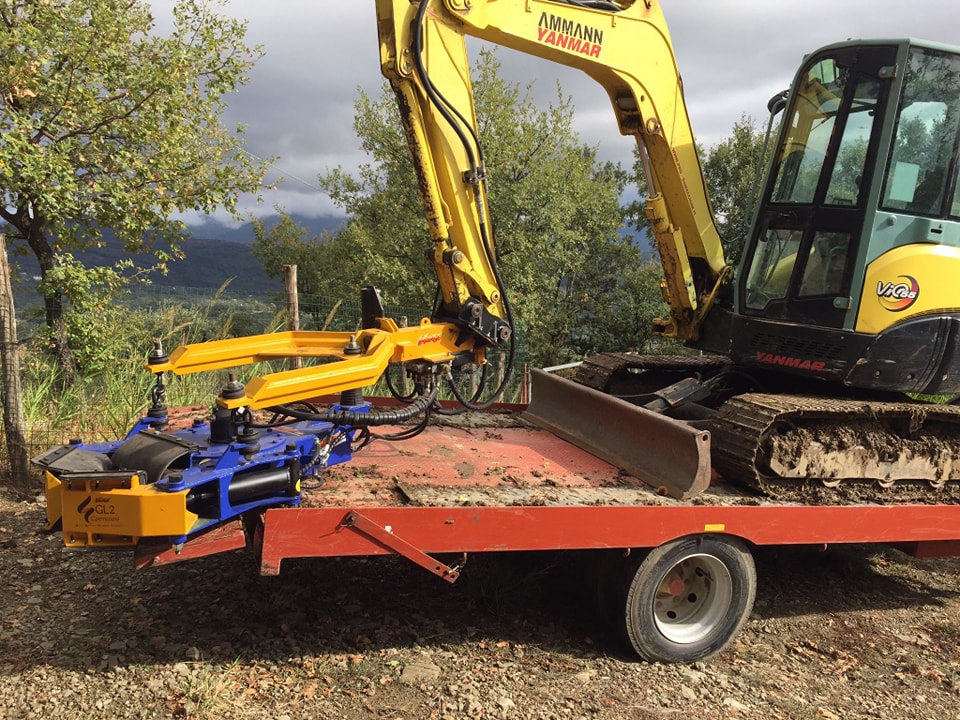

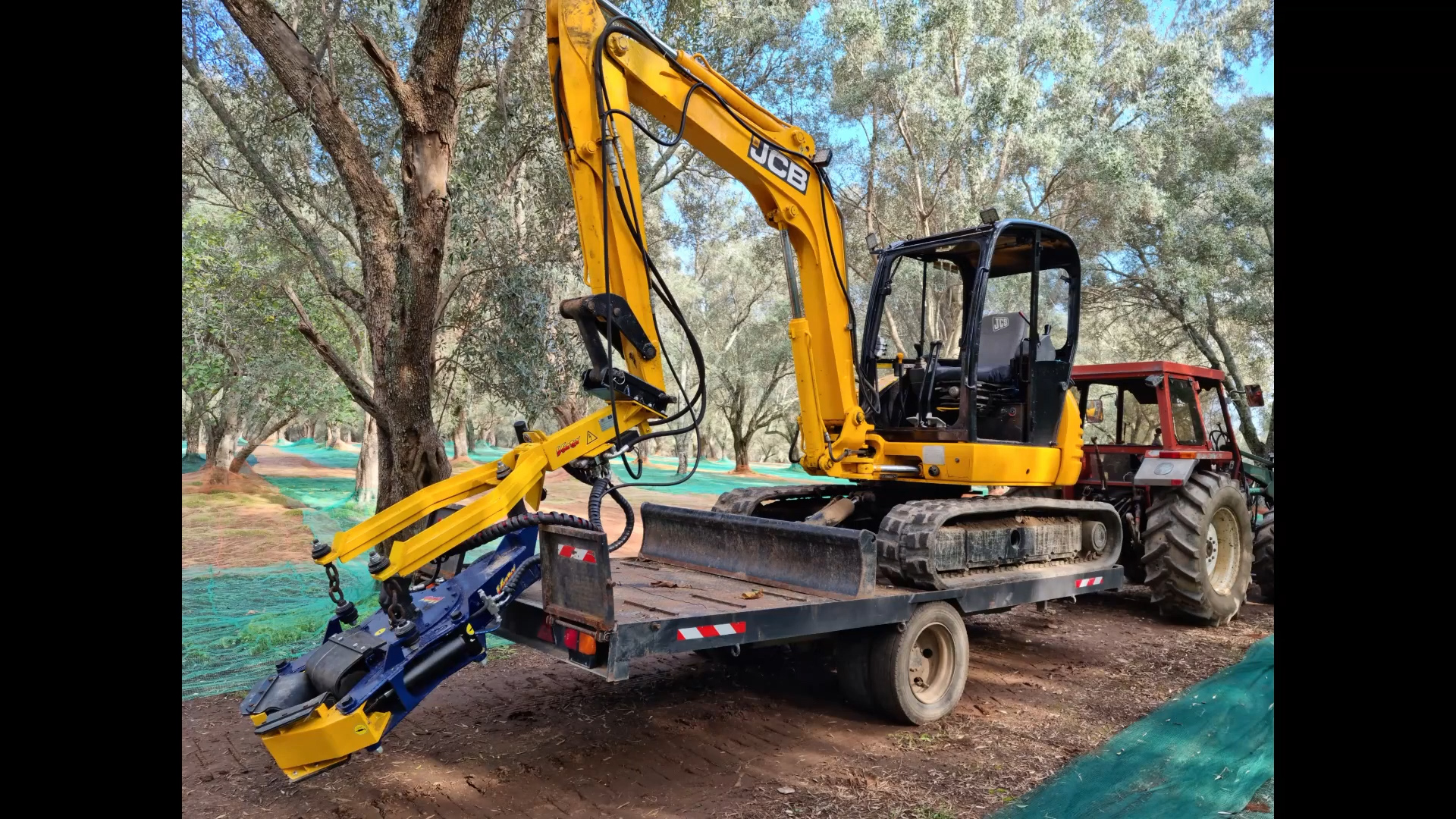

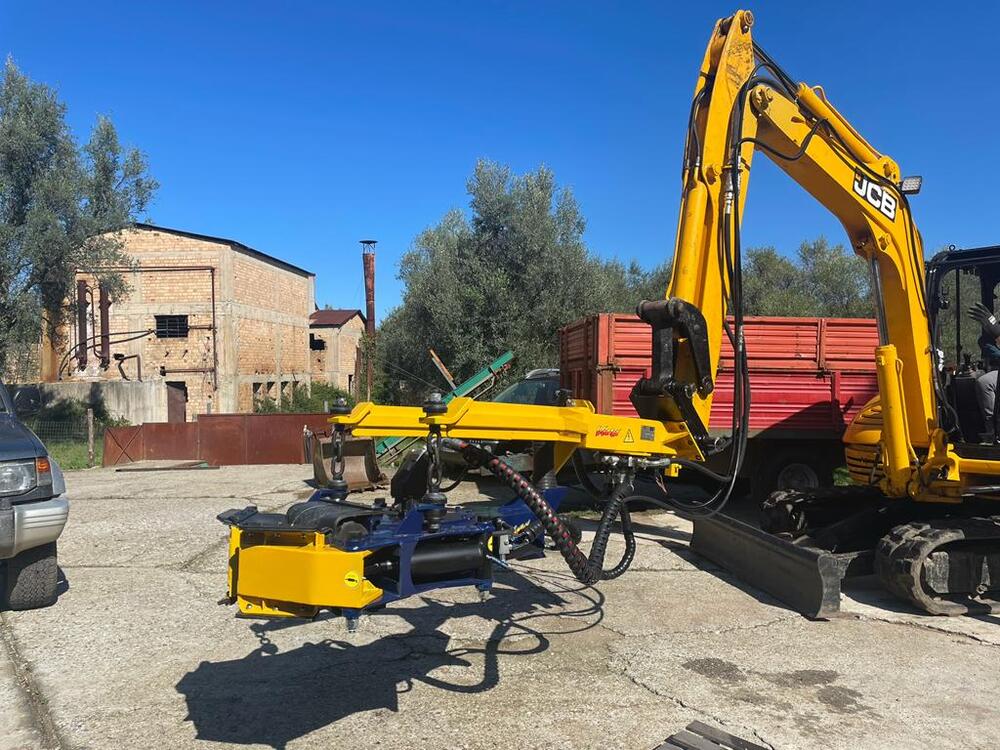

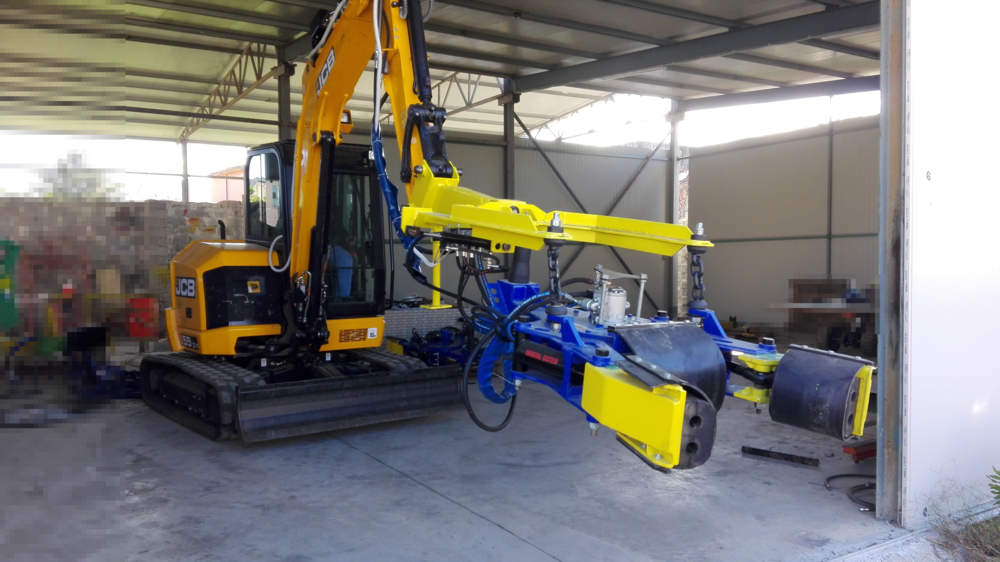

Kit Vortex J

Technical Features

  • Max length 5,000 mm

  • Max Vibrator Weight 250 Kg

  • Compact and lightweight construction concept

  • Orbital Vortex Vibrator


Vortex J is born from the positive and effective Vortex EVO series, a series of high efficiency inertial vibrators. Vortex J is also protected by the GL2 invention patent, it is born from solid research and optimization of the operating concepts of the larger models, but to respond to a specific need that the market is advancing, and it is the possibility of being easily installed on mini excavators, mini loaders, and Skids, and agricultural tractors even of modest power. Vortex J is able to reach the optimal vibration frequencies starting from about 40 HP, guaranteeing the expected harvest yields.


Gallery

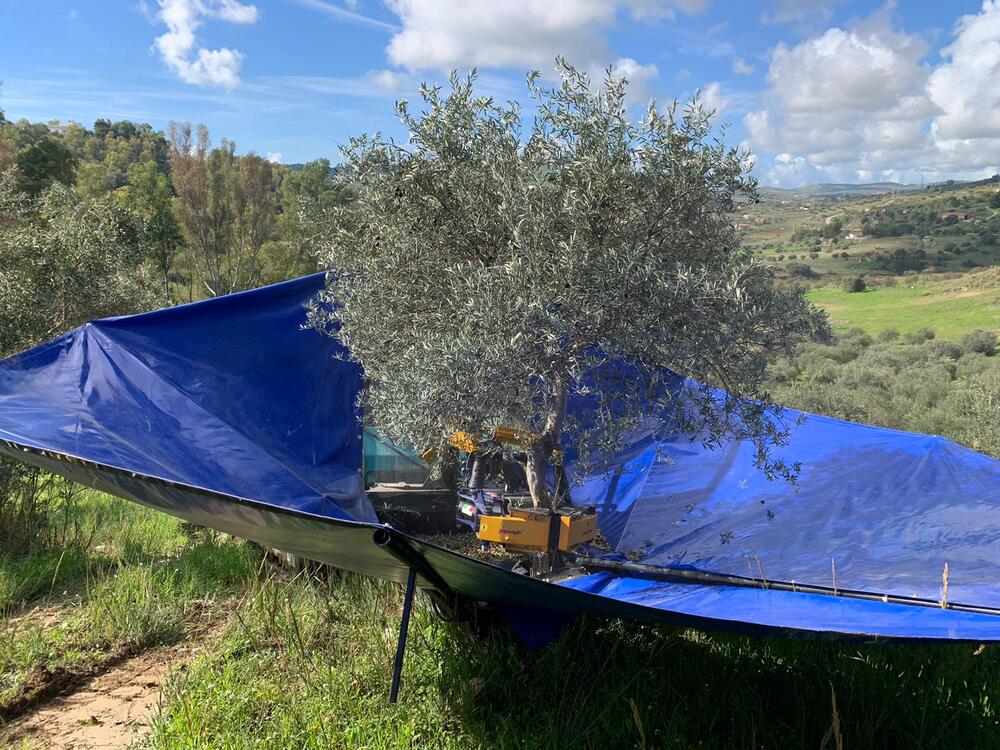

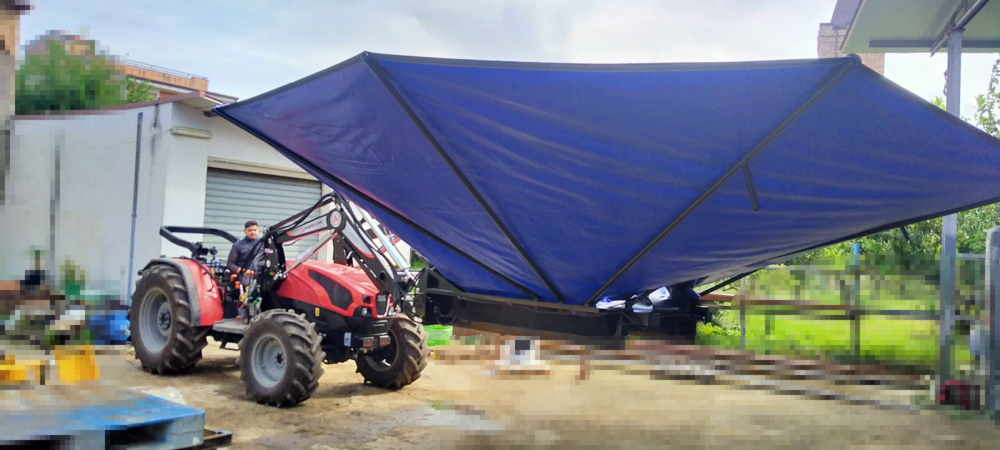

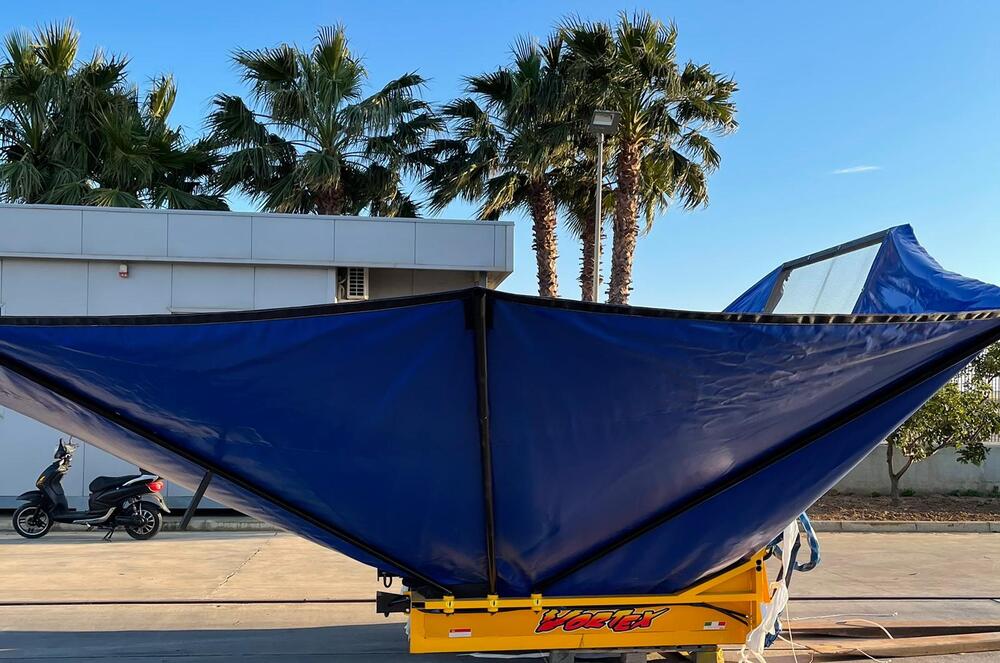

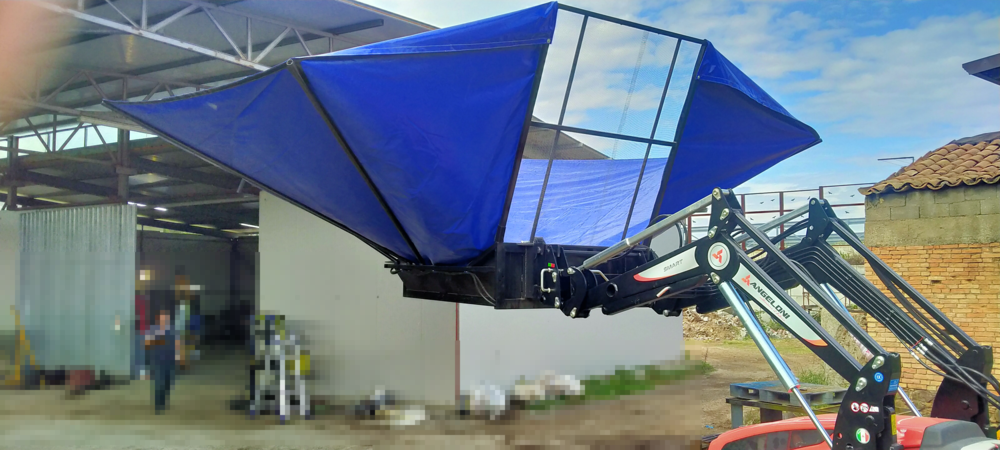

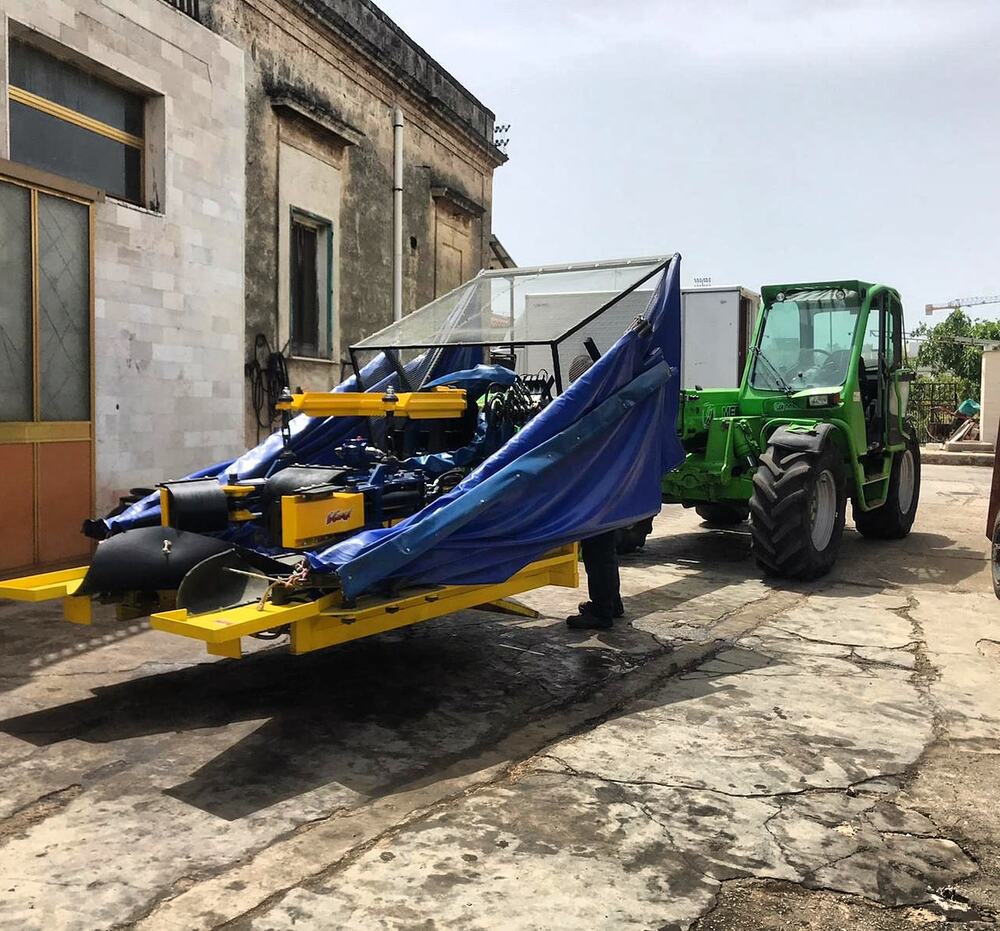

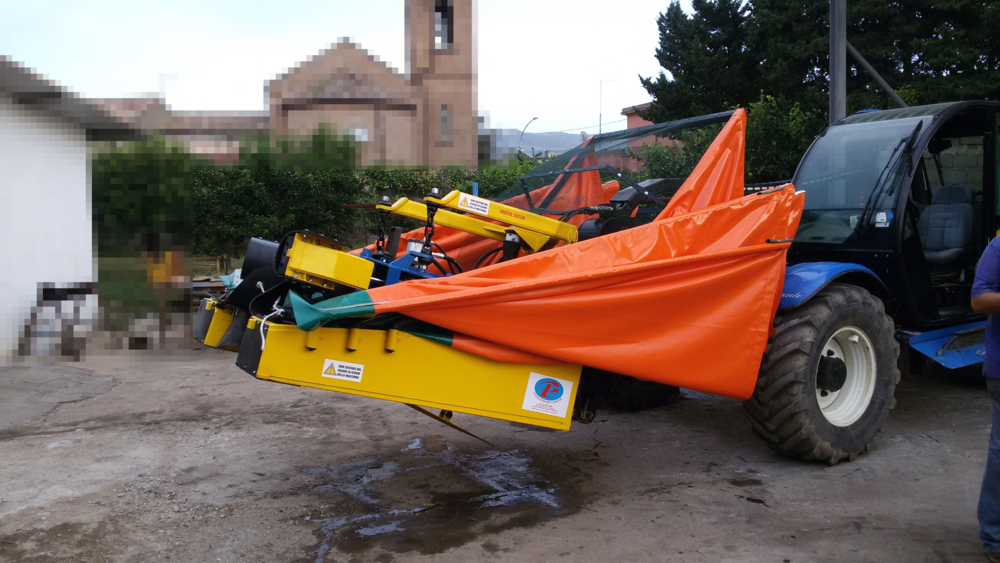

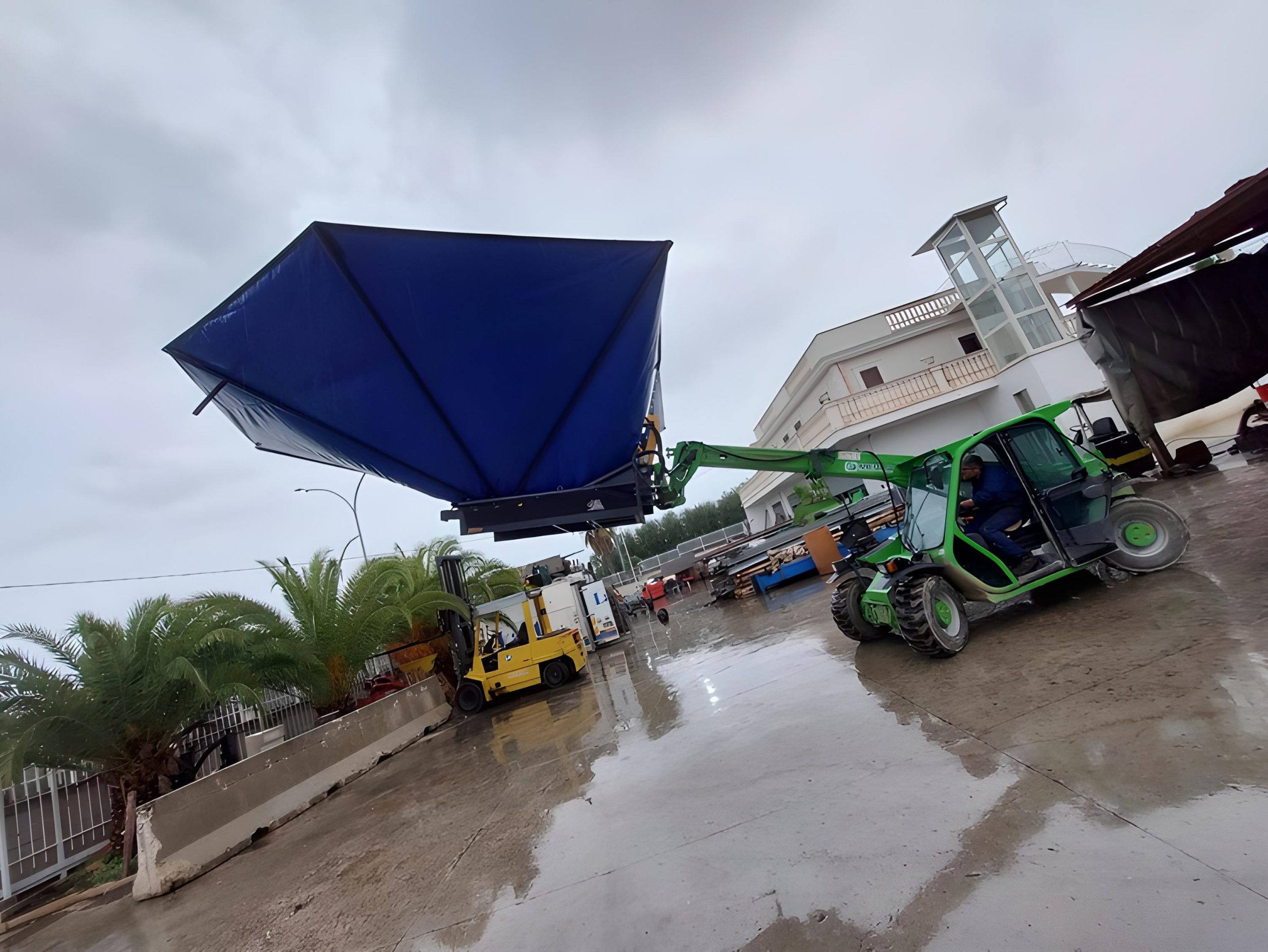

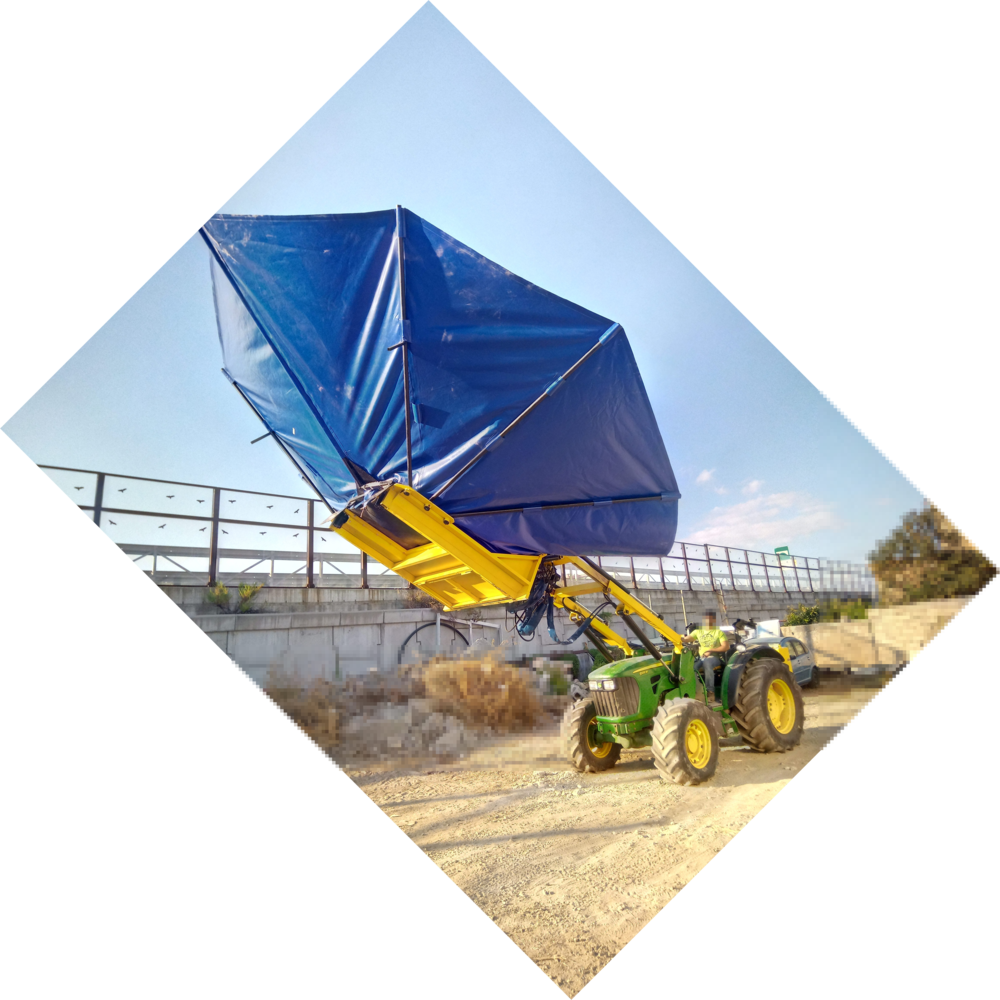

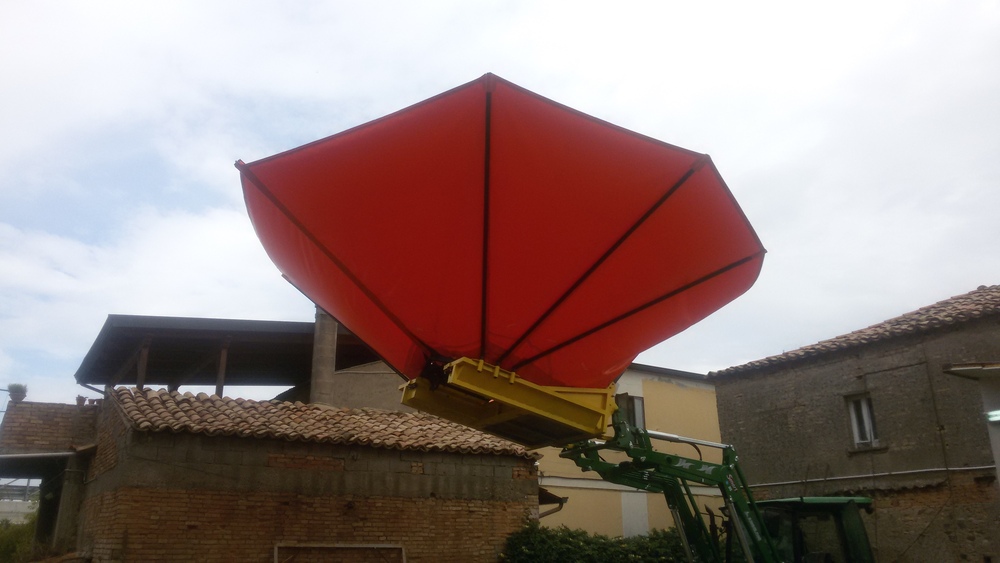

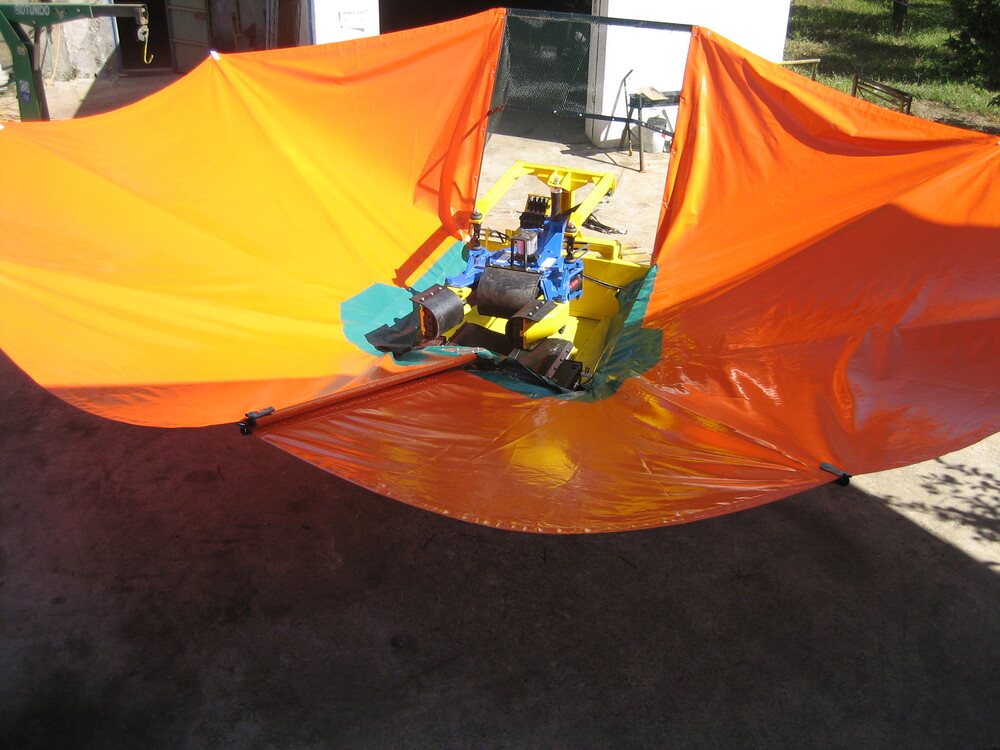

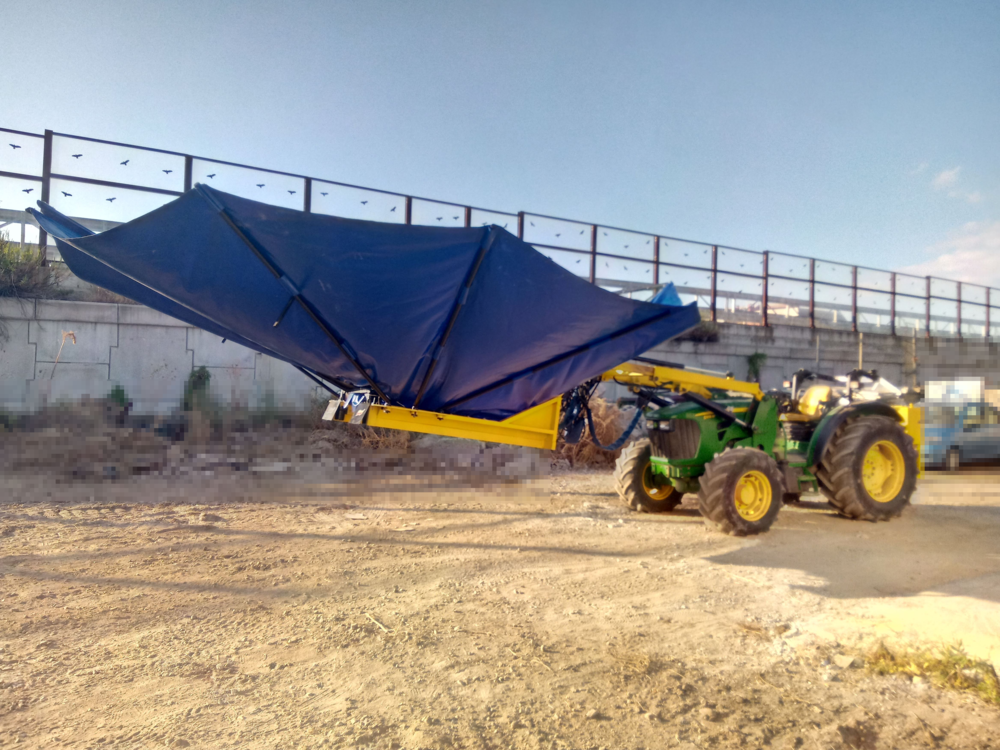

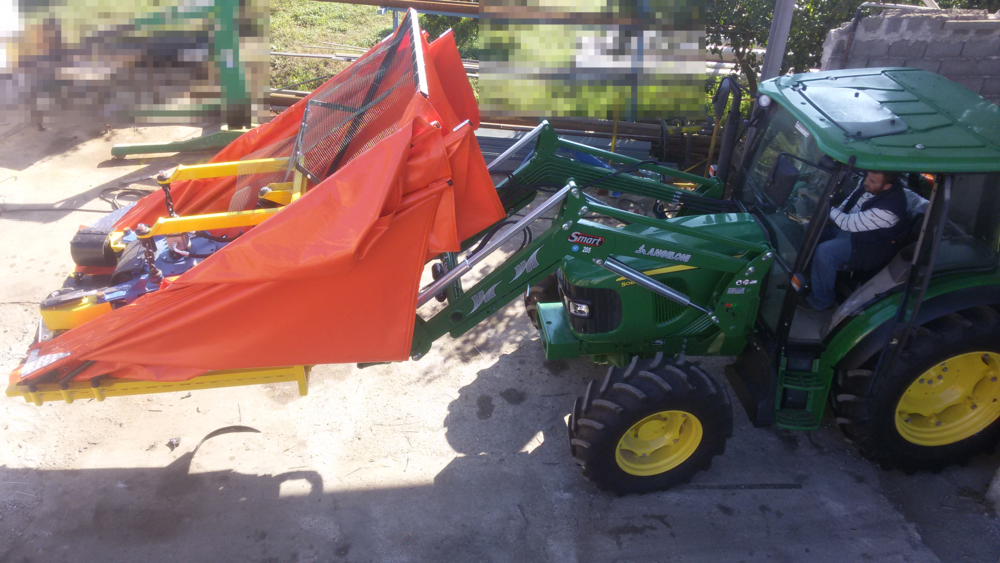

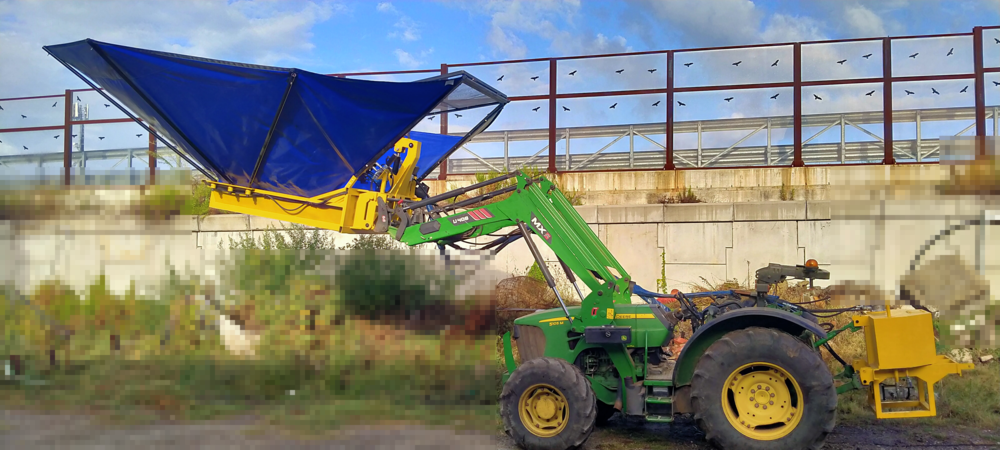

Kit T-Interceptor

Technical Features

  • Available winding diameters 6, 7, 8. m

  • Total weight 380 kg (approximately umbrella)

  • Light and compact design

  • Orbital Vortex Vibrator


Designed according to the GL2 standards that see concepts such as compactness, maximum maneuverability, weight and functionality prevail in the design phase, the gl2 inverted umbrella represents the top concept for the mechanization of harvesting sites. Completely oil-actuated, it can be easily uninstalled from the kit at the collection site, and allow the same to proceed with the work being able to exploit the powerful extension of the arm to search for tightening in high branches.


Gallery

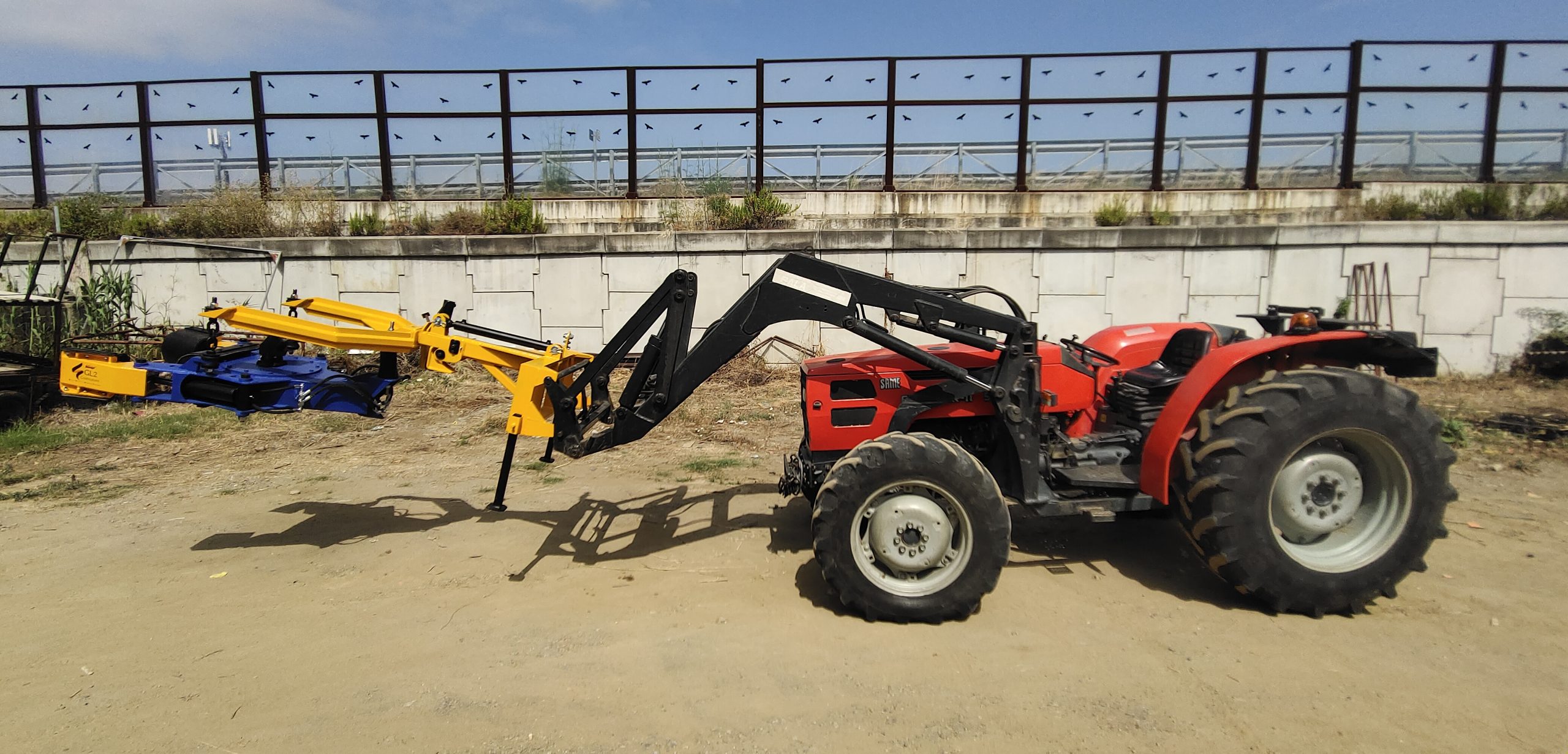

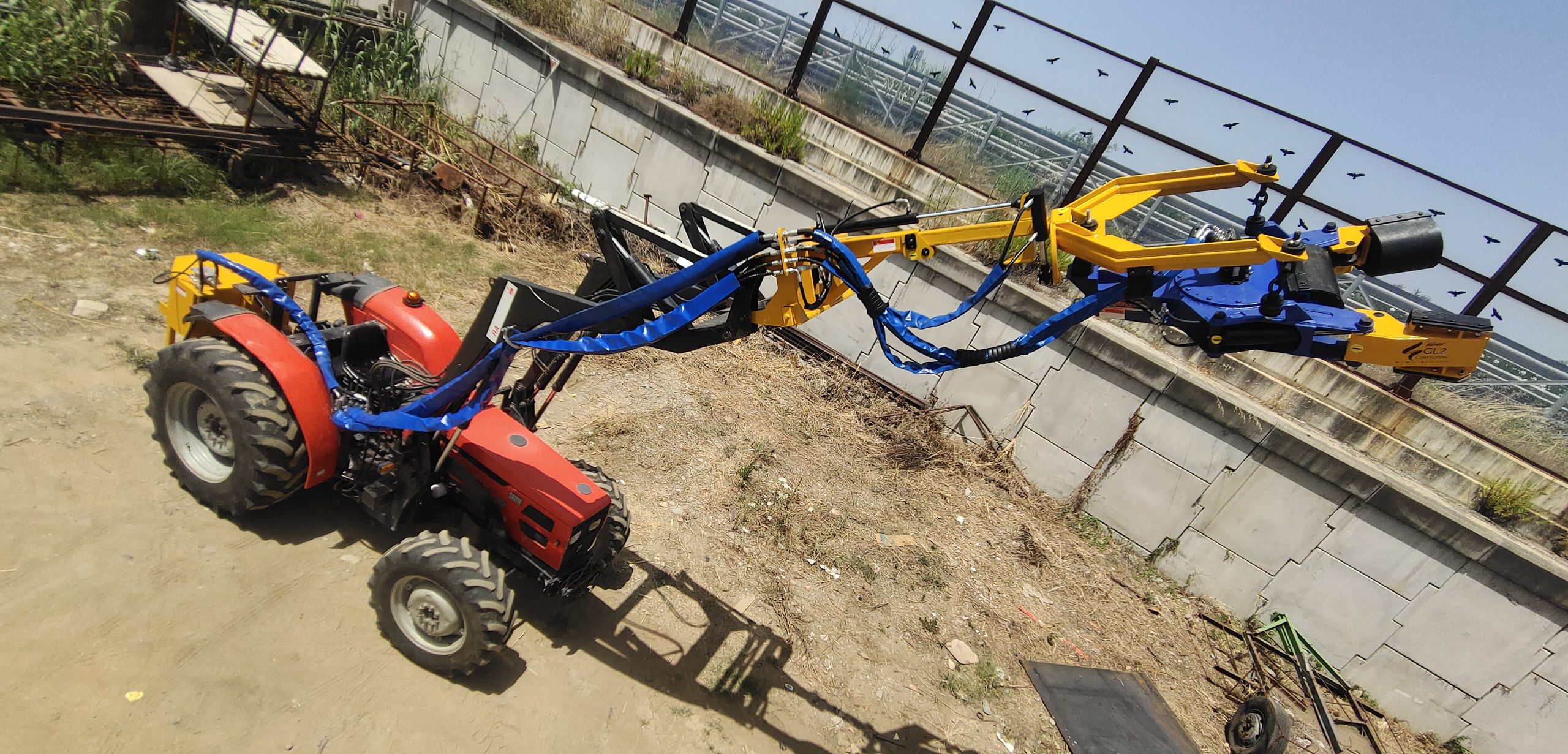

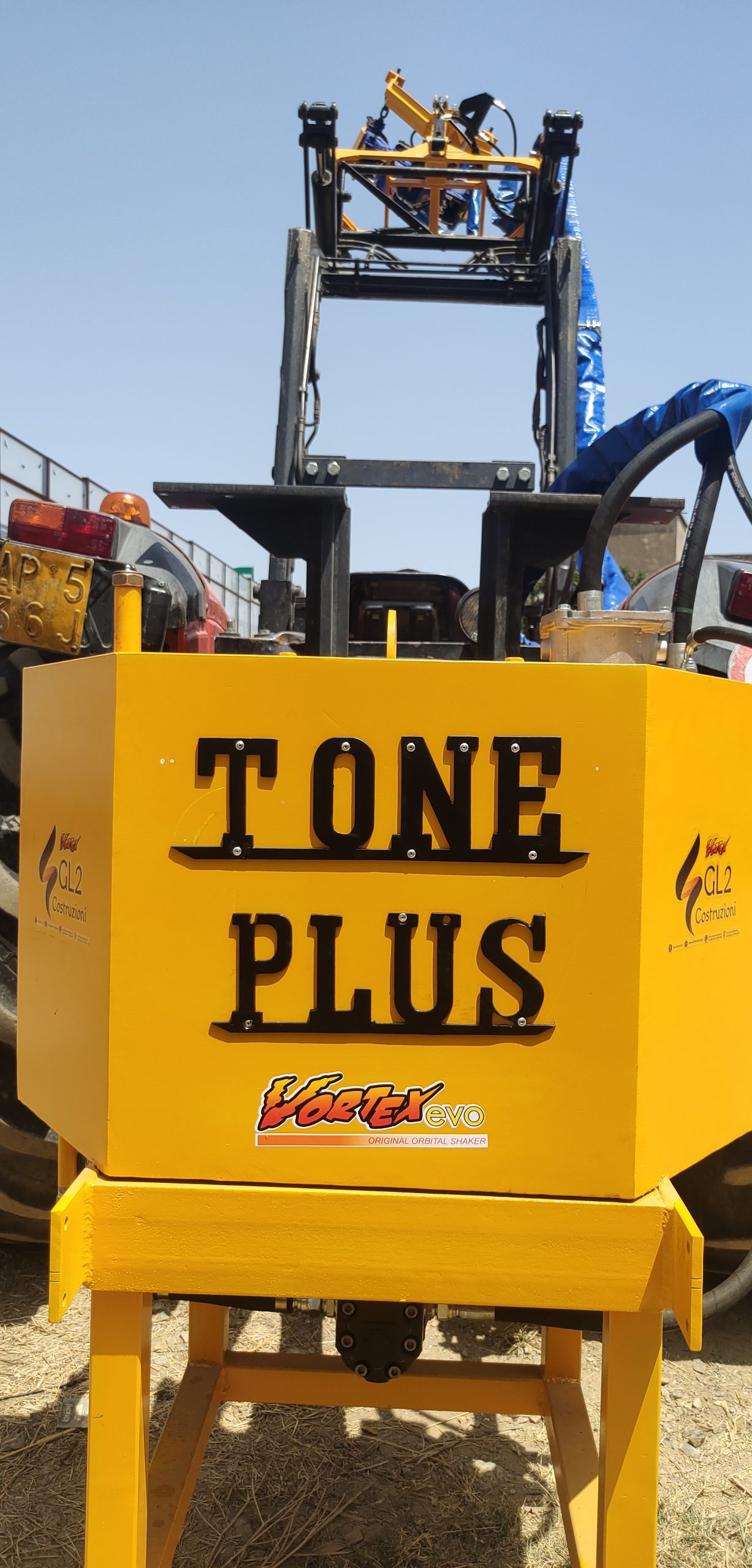

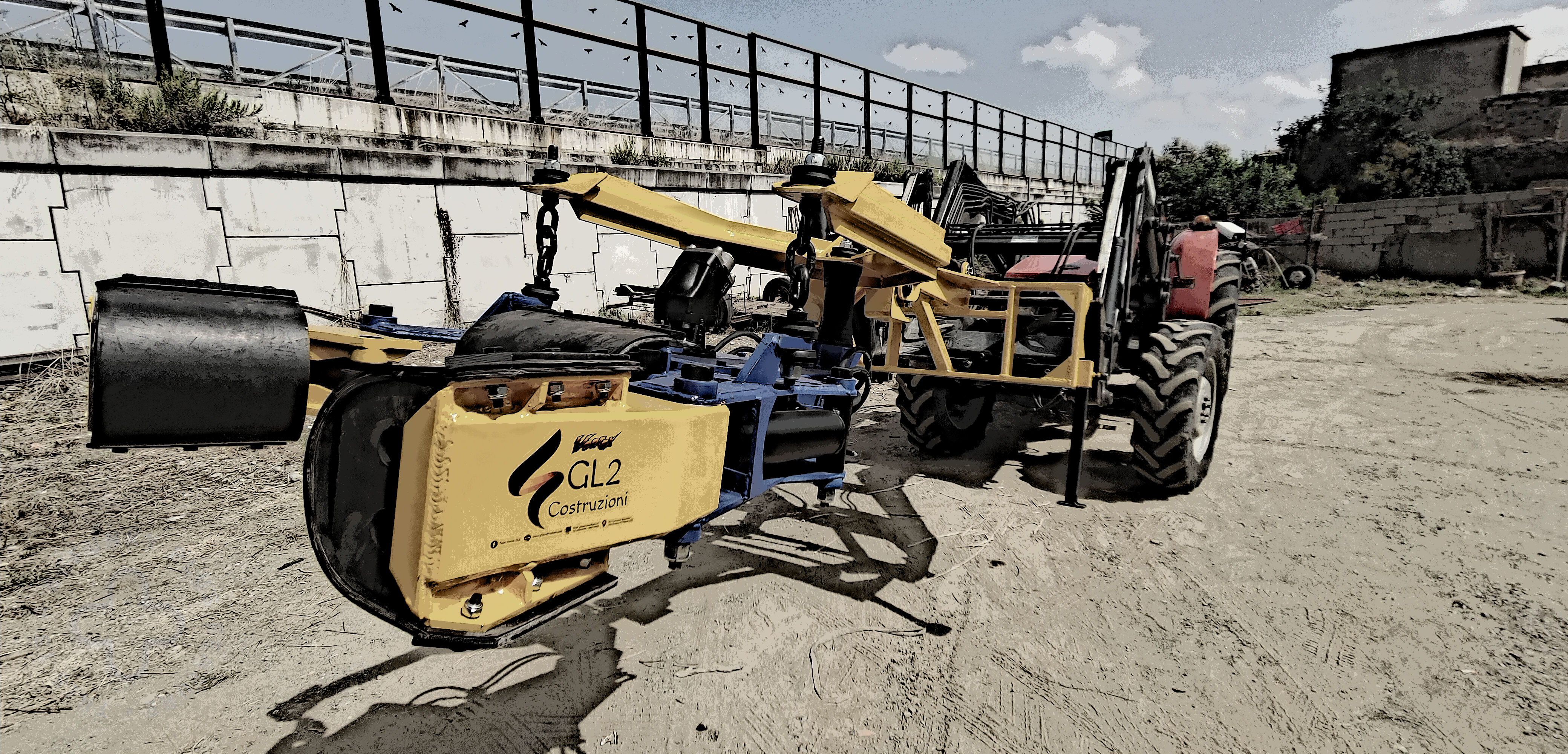

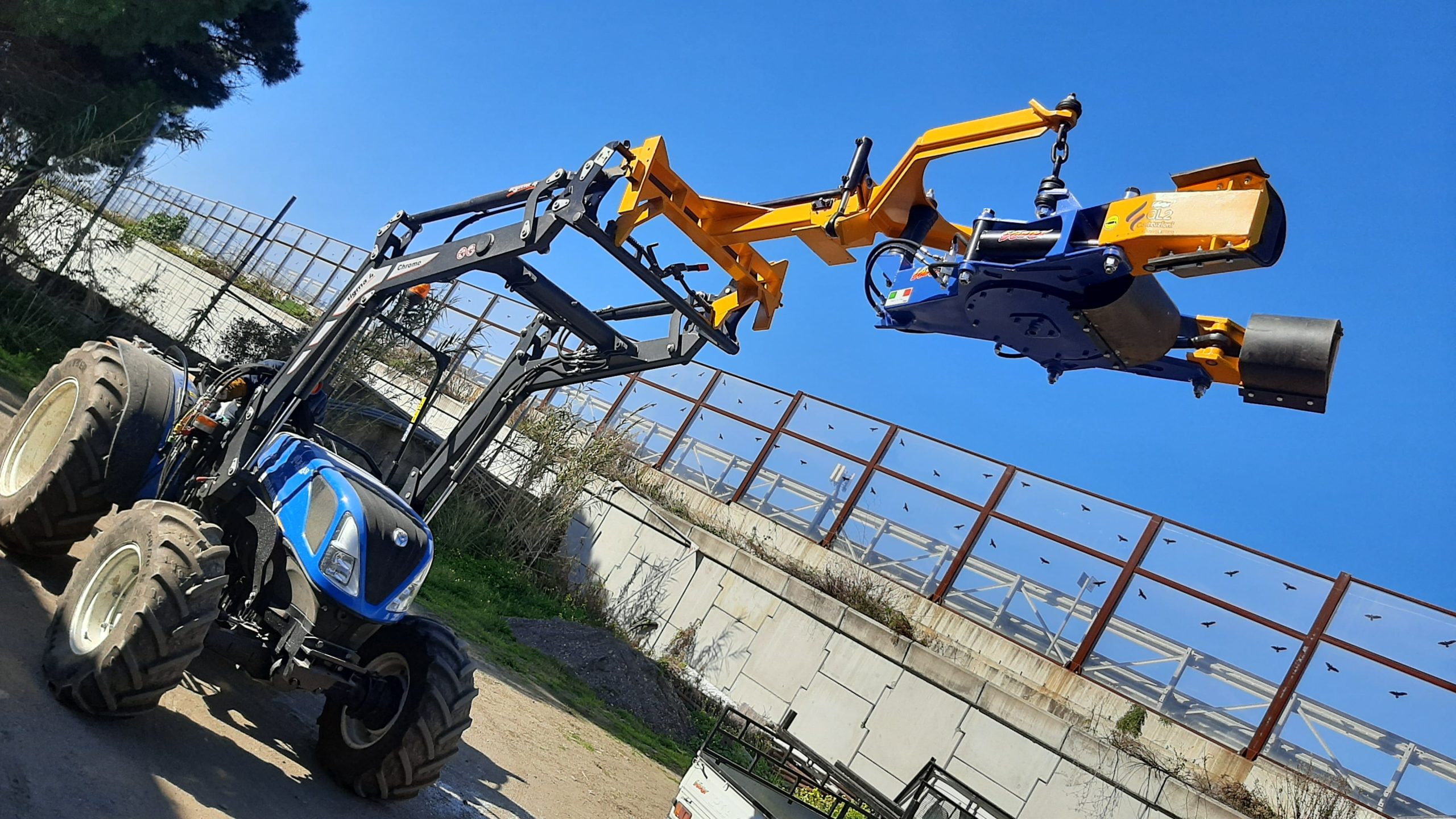

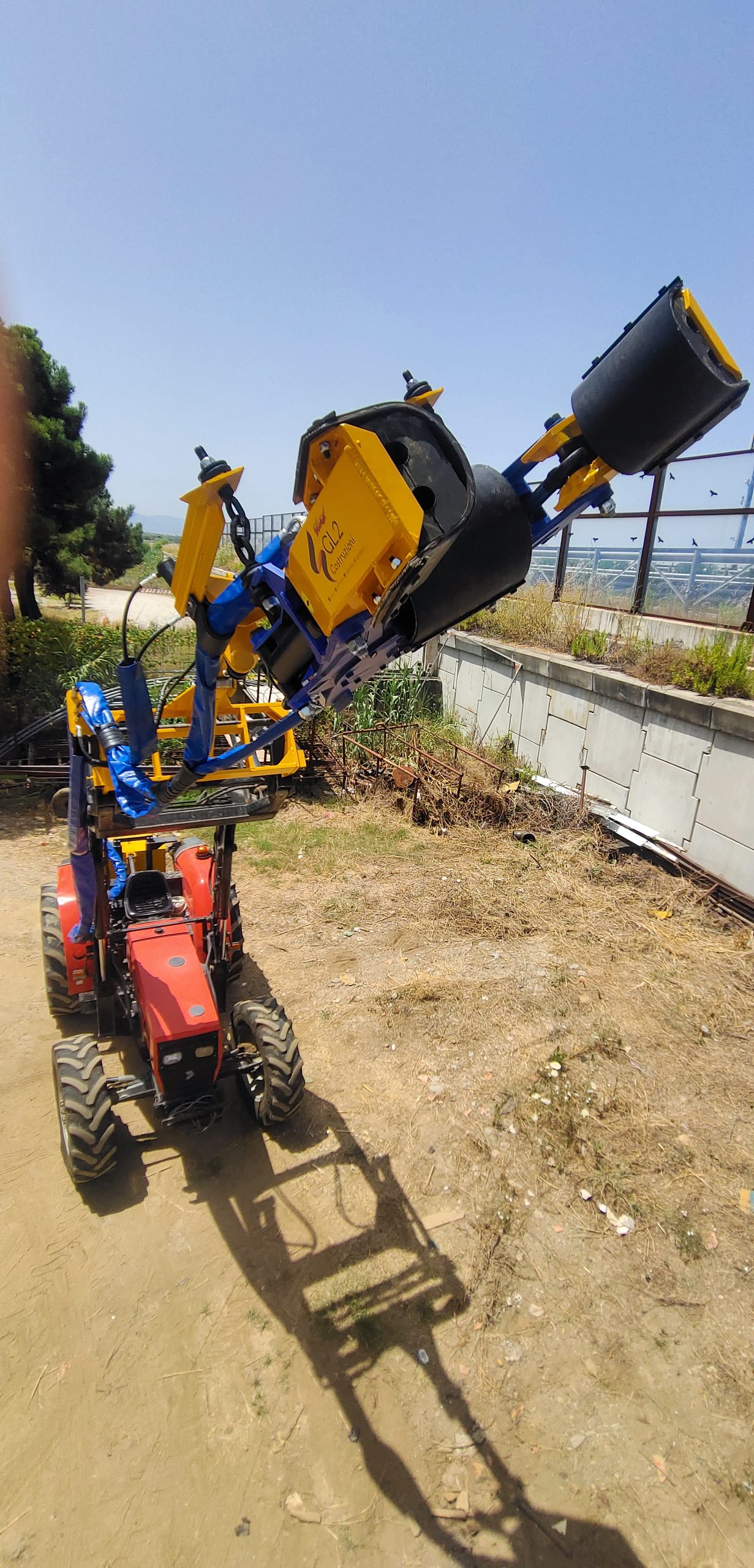

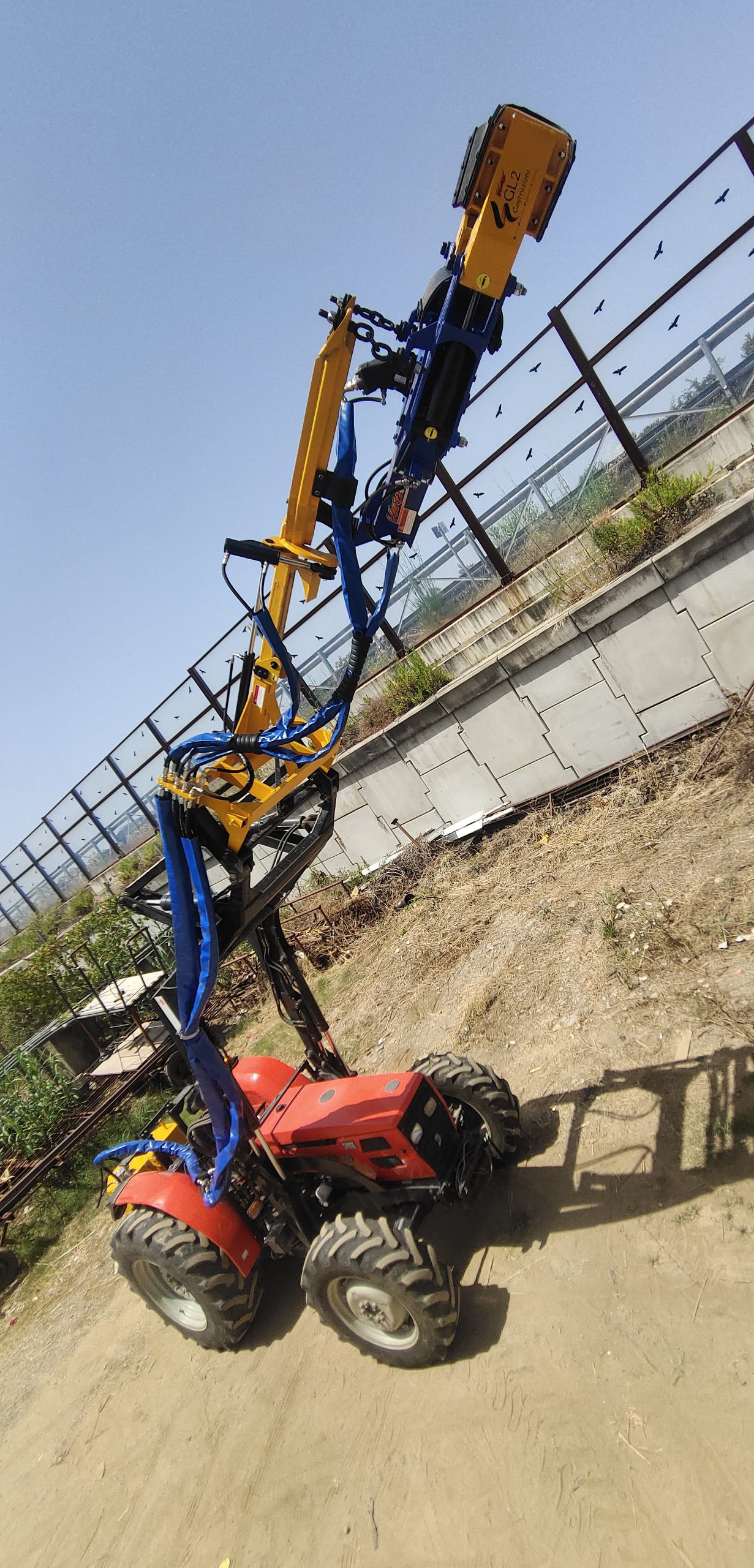

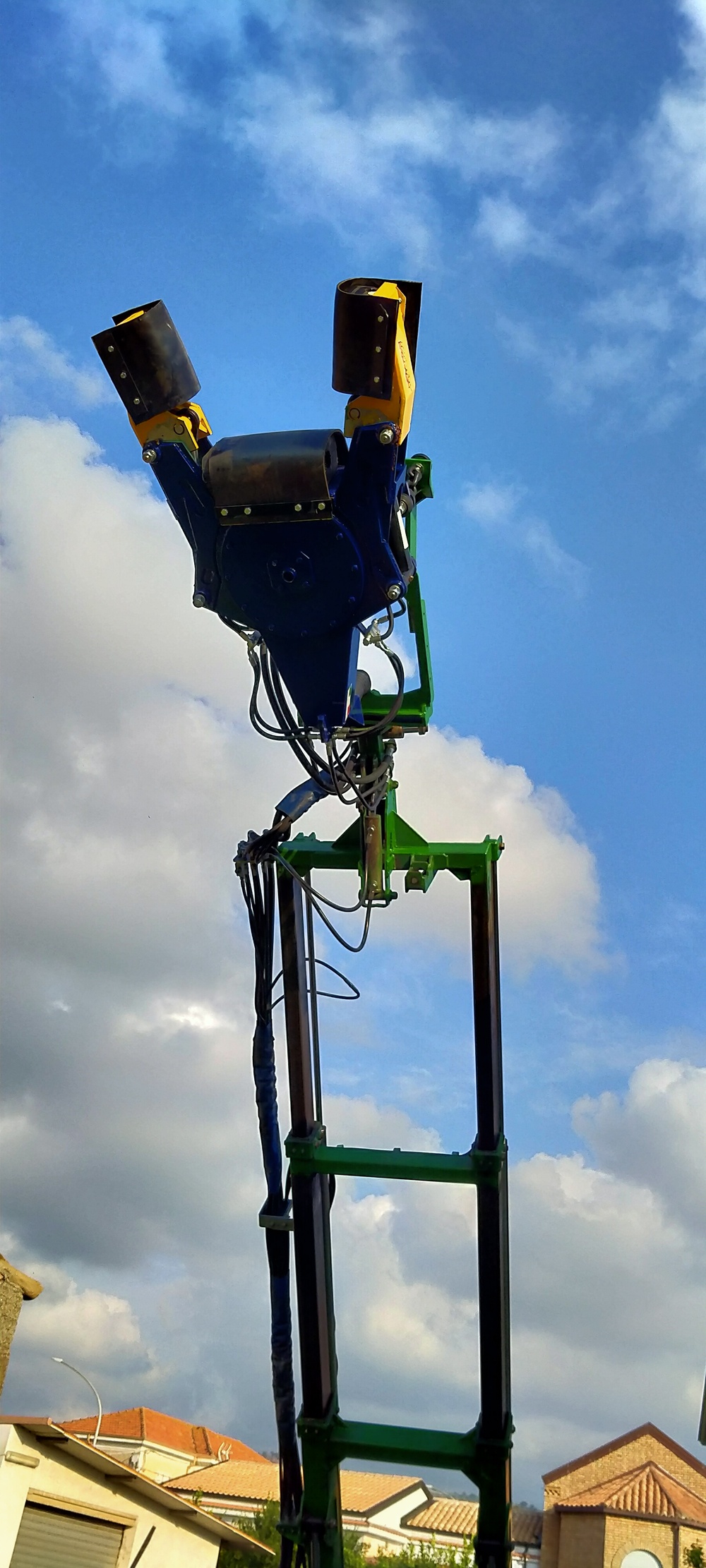

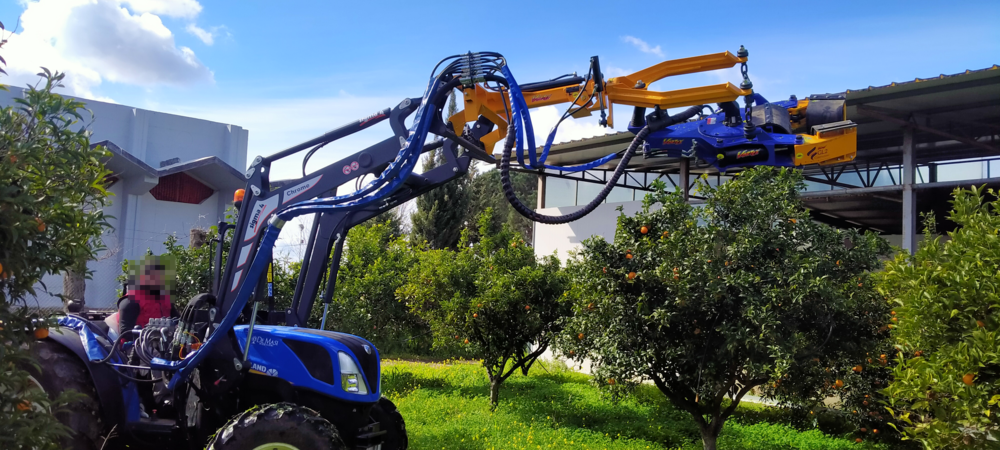

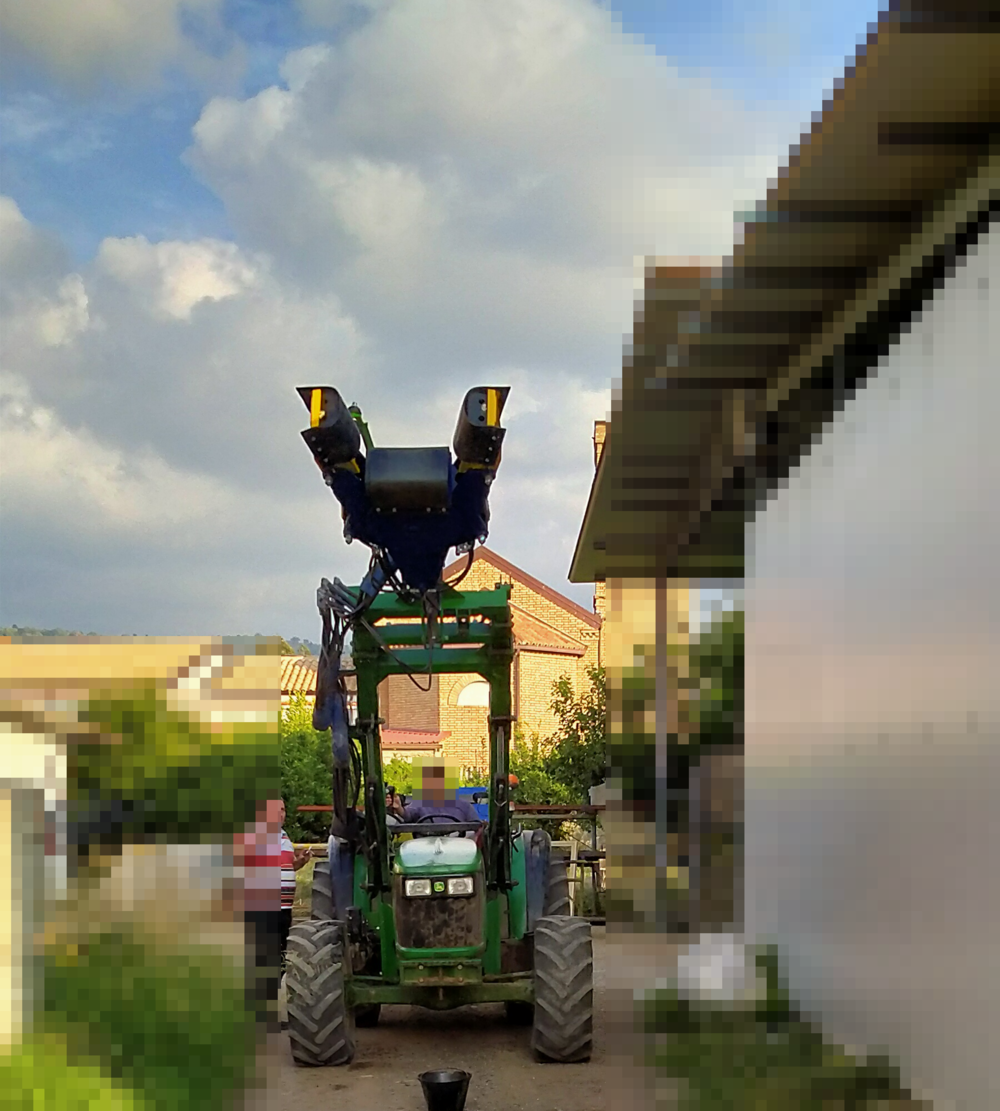

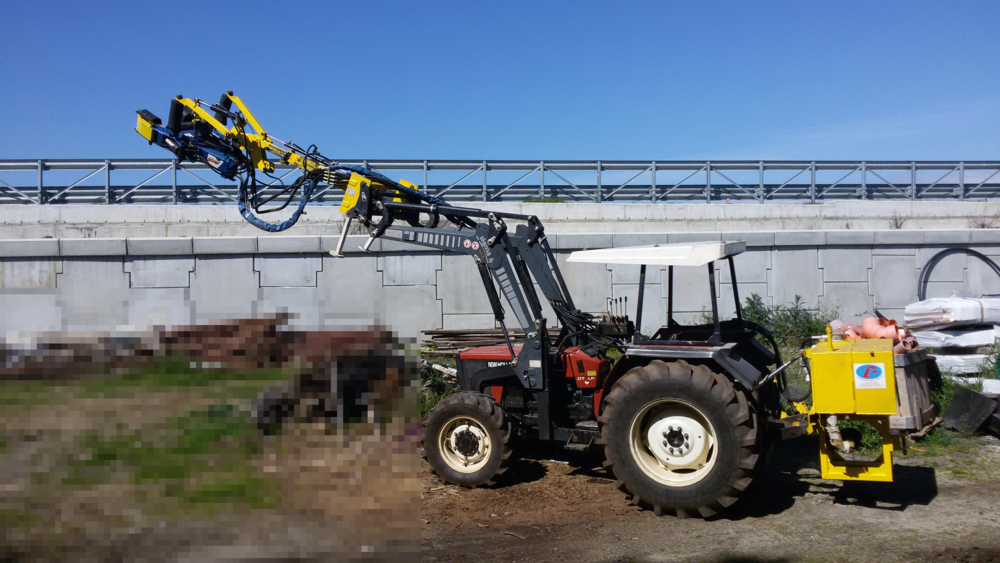

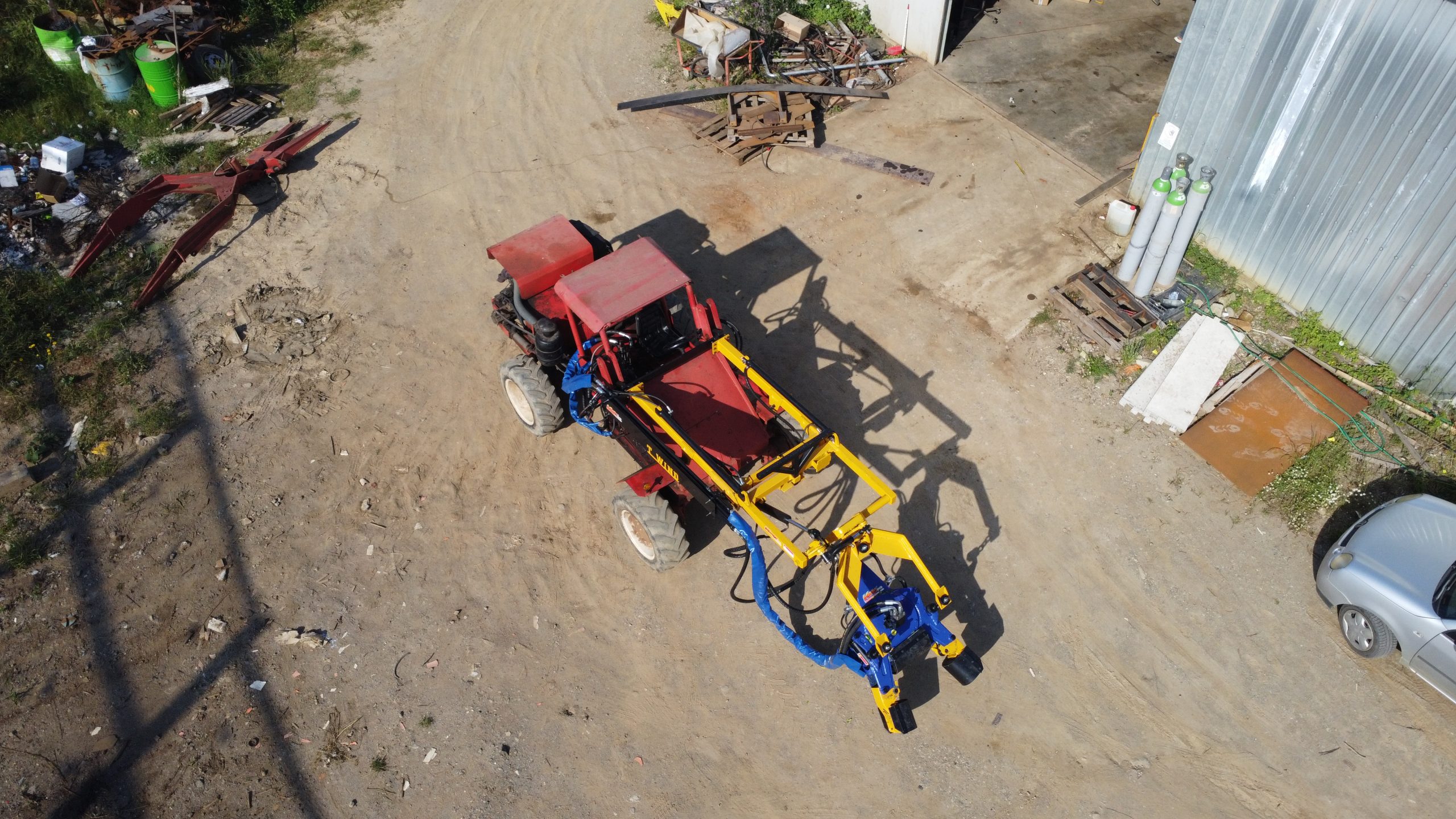

Kit Telescopic T-One Plus

Technical Features

  • Max length 6,000 mm

  • Max length 6,000 mm

  • Compact and lightweight construction concept

  • Orbital Vortex Vibrator

  • Rolling movement of the arm that moves the gripper laterally for intensive olive groves


Kit for agricultural tractor with front loader arm, it is composed of a telescopic arm with lateral rolling function (lateral rotation of the arm DX/SX from 30 to 60 degrees). The T-one plus arm is a newly designed Shaker Clamp with quick release both mechanically and for hydraulic connections, and is equipped with 4 hydraulic movements to be able to work in intensive sixths with the Vortex vibrator also oriented laterally. The T-One Plus is perfectly usable both in traditional sixths, counting on the lifting capacity of the loader arm (GL2), and on secular sixths, also counting on the triple element telescopic capacity to safely reach "operational" heights of about 7 m.


Gallery

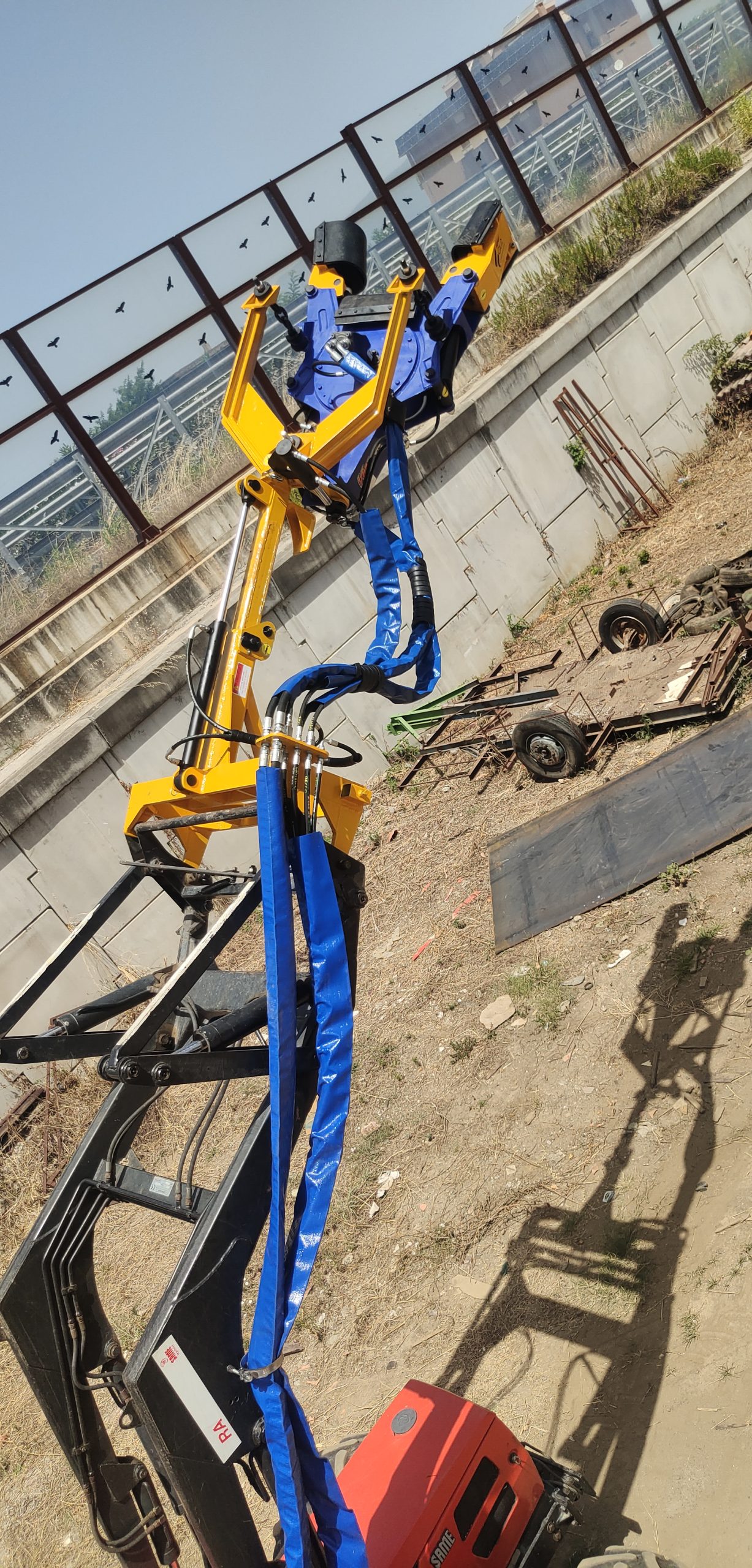

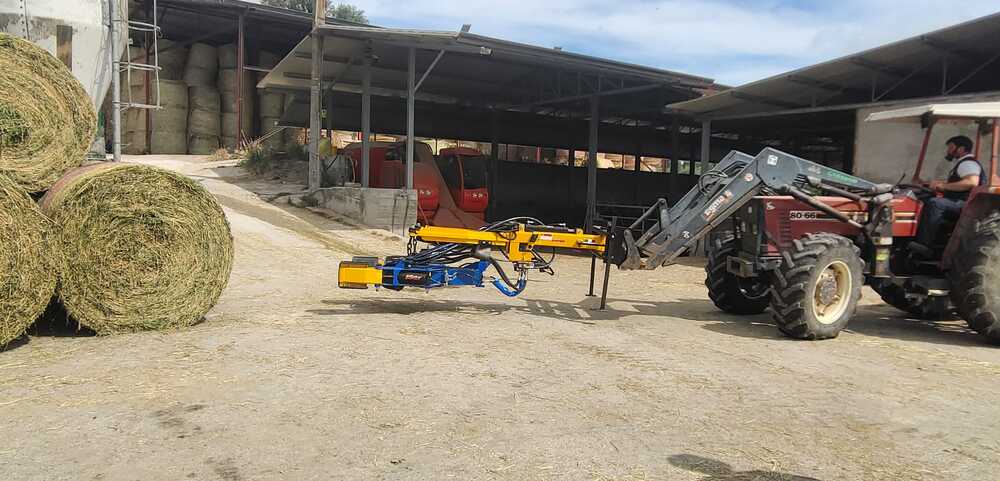

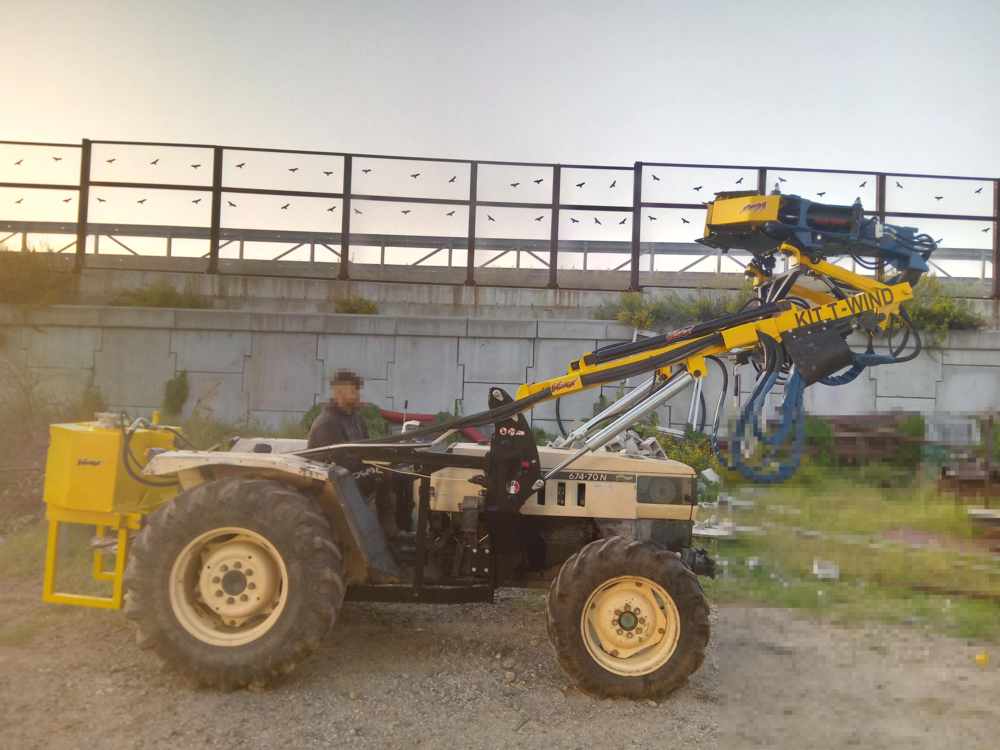

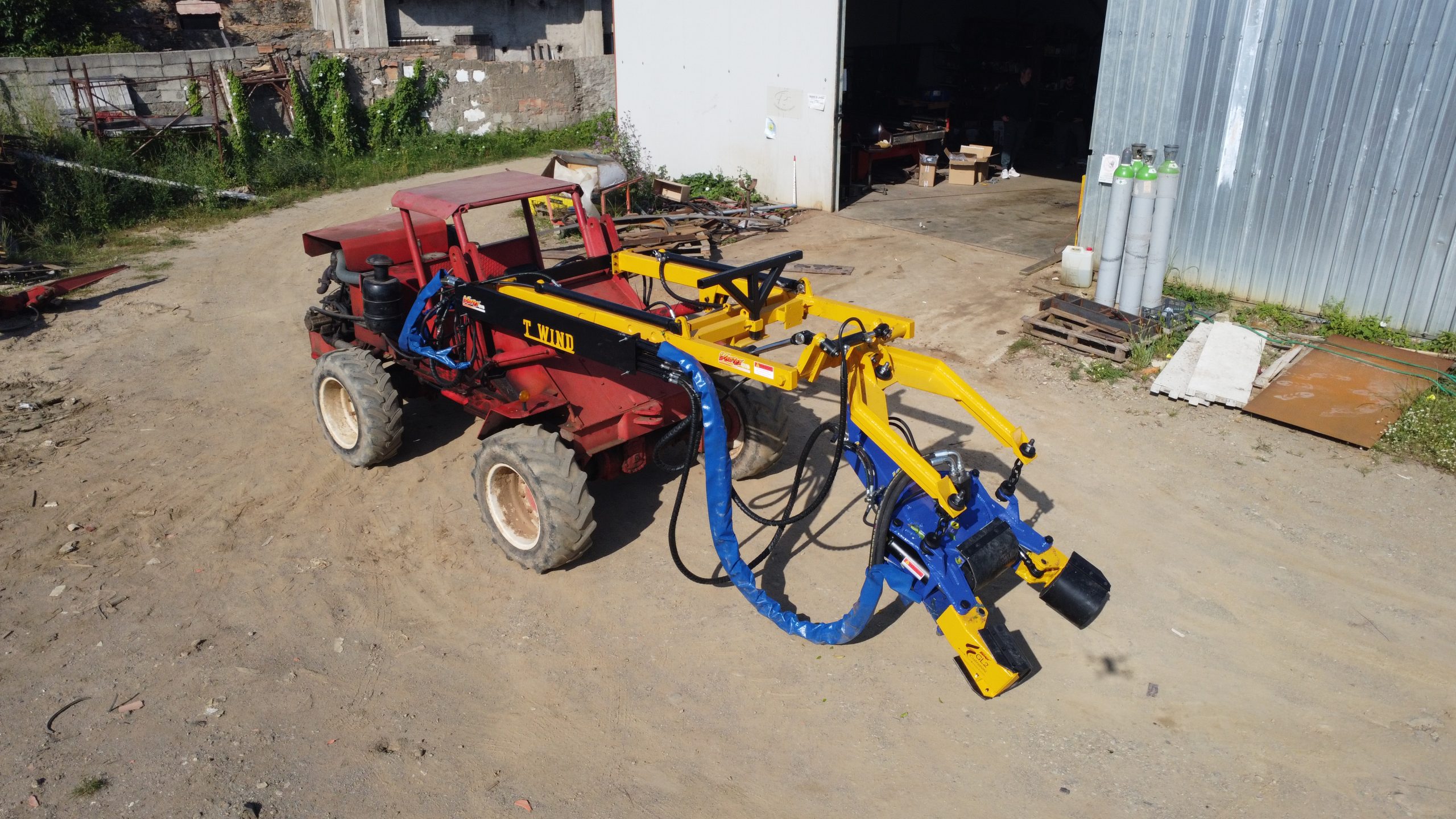

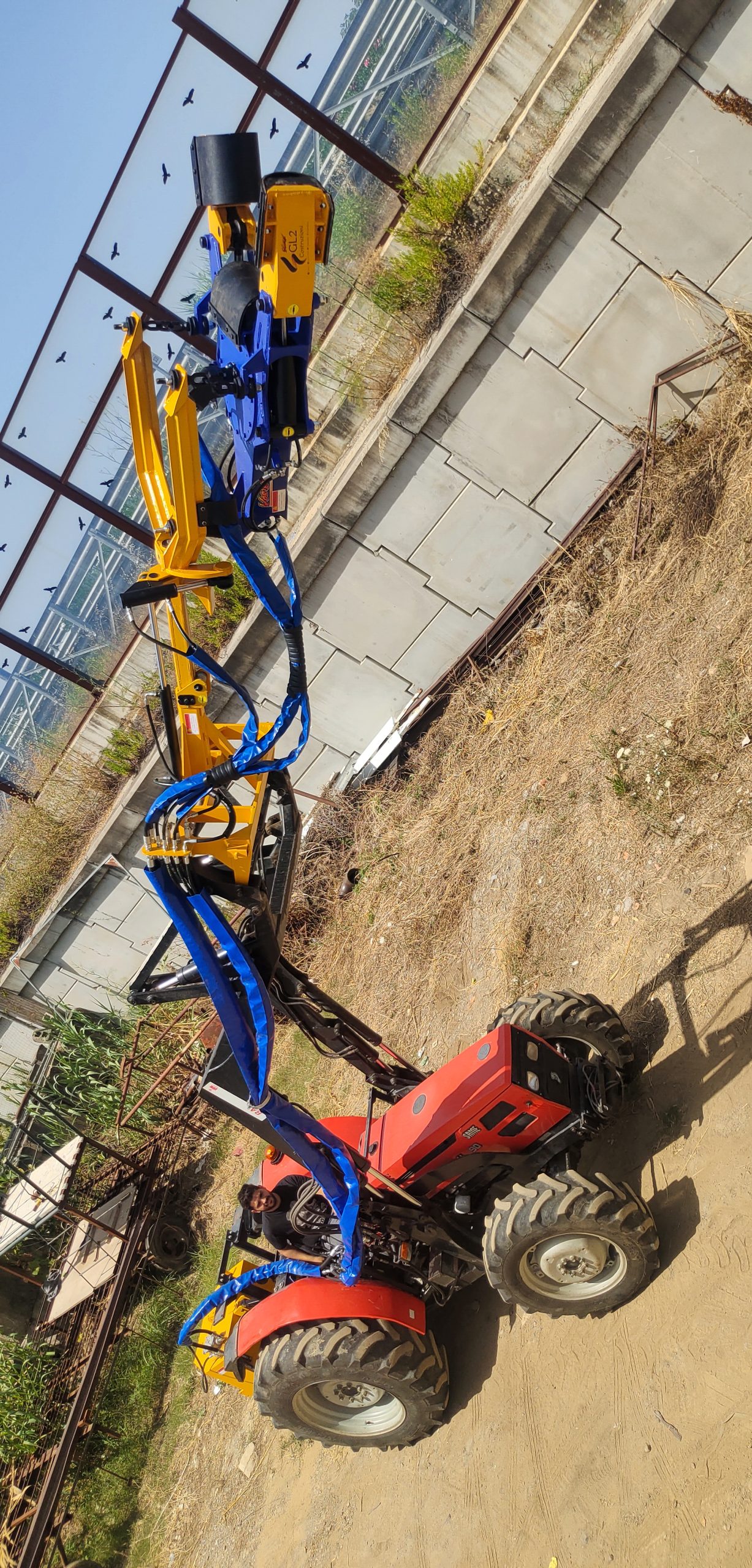

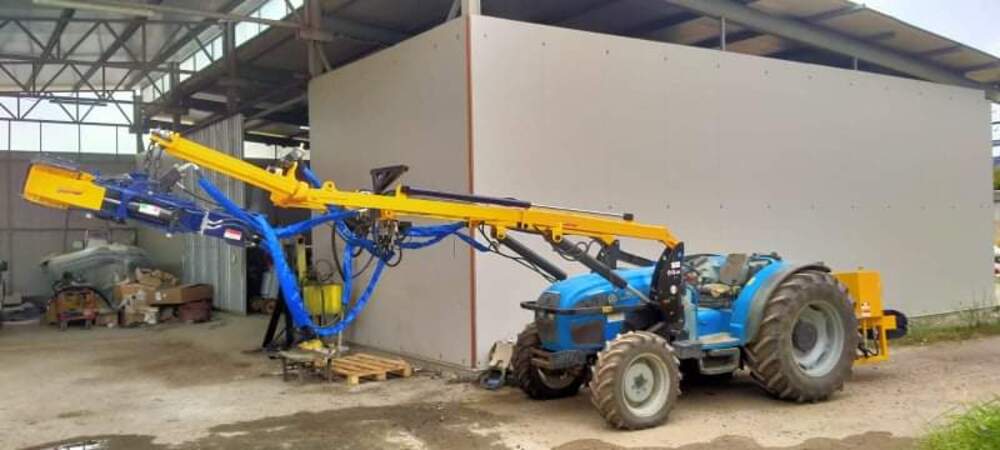

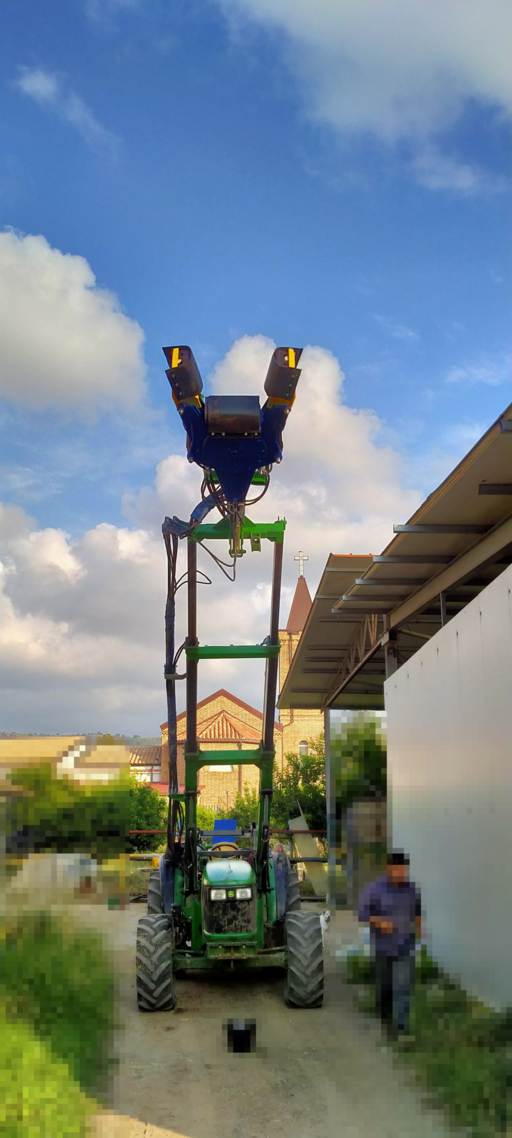

Kit Telescopic T-Wind

Caratteristiche Tecniche

  • Max length 5,500 mm

  • Max extension 1000 mm

  • Compact and lightweight construction concept

  • Orbital Vortex Vibrator

  • Rolling movement of the swivel arm that brings the gripper laterally to work in intensive plantations


kit for agricultural tractor with front installation, characterized by a parallel front telescopic arm with a lightened design. Installable on all tractors and operating machines, even with an orchard-type frame. It allows maximum operation in even intensive crops, given the very limited weight and overall dimensions, but at the same time capable of operating heights of around 7 m.


Gallery

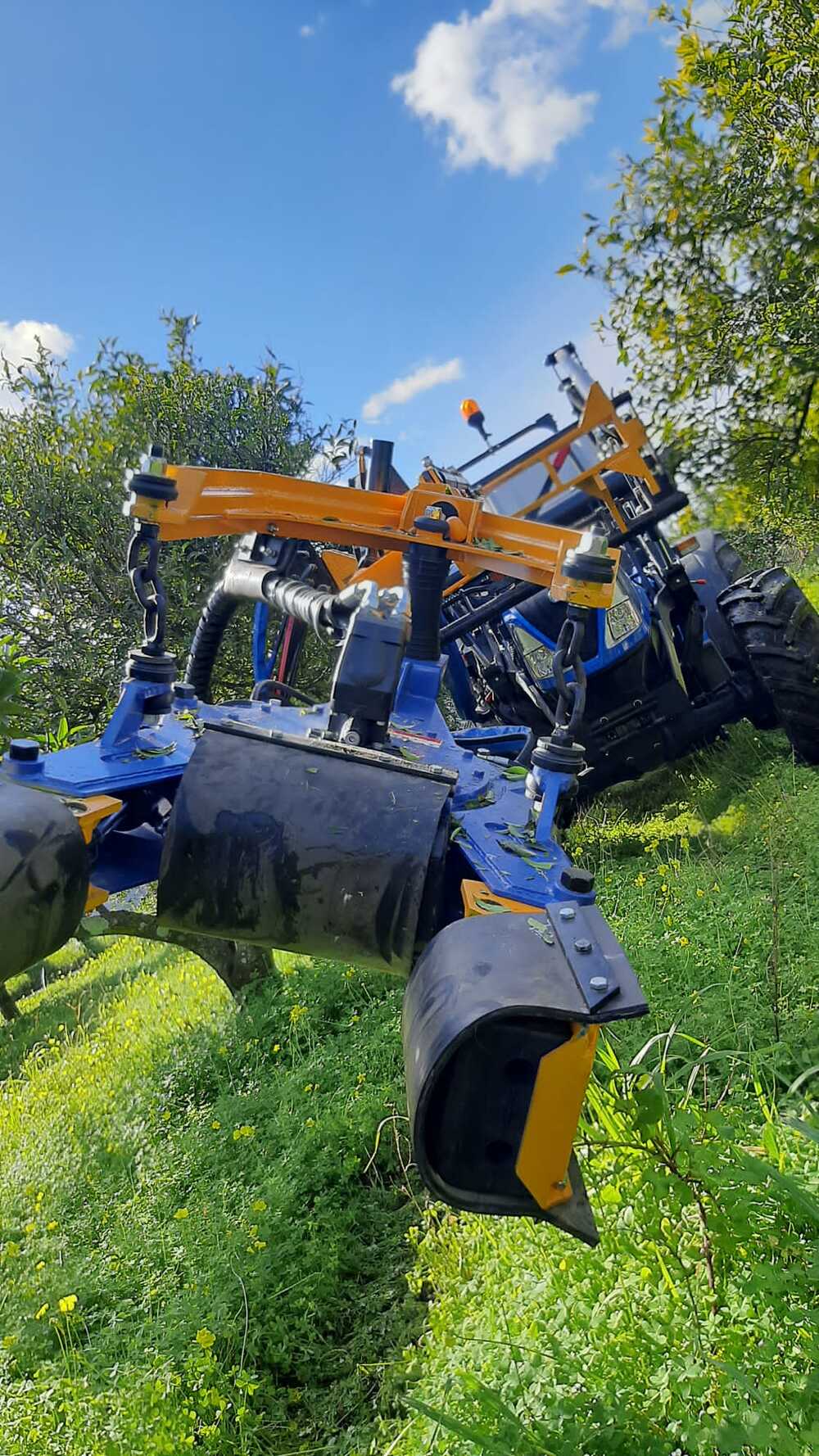

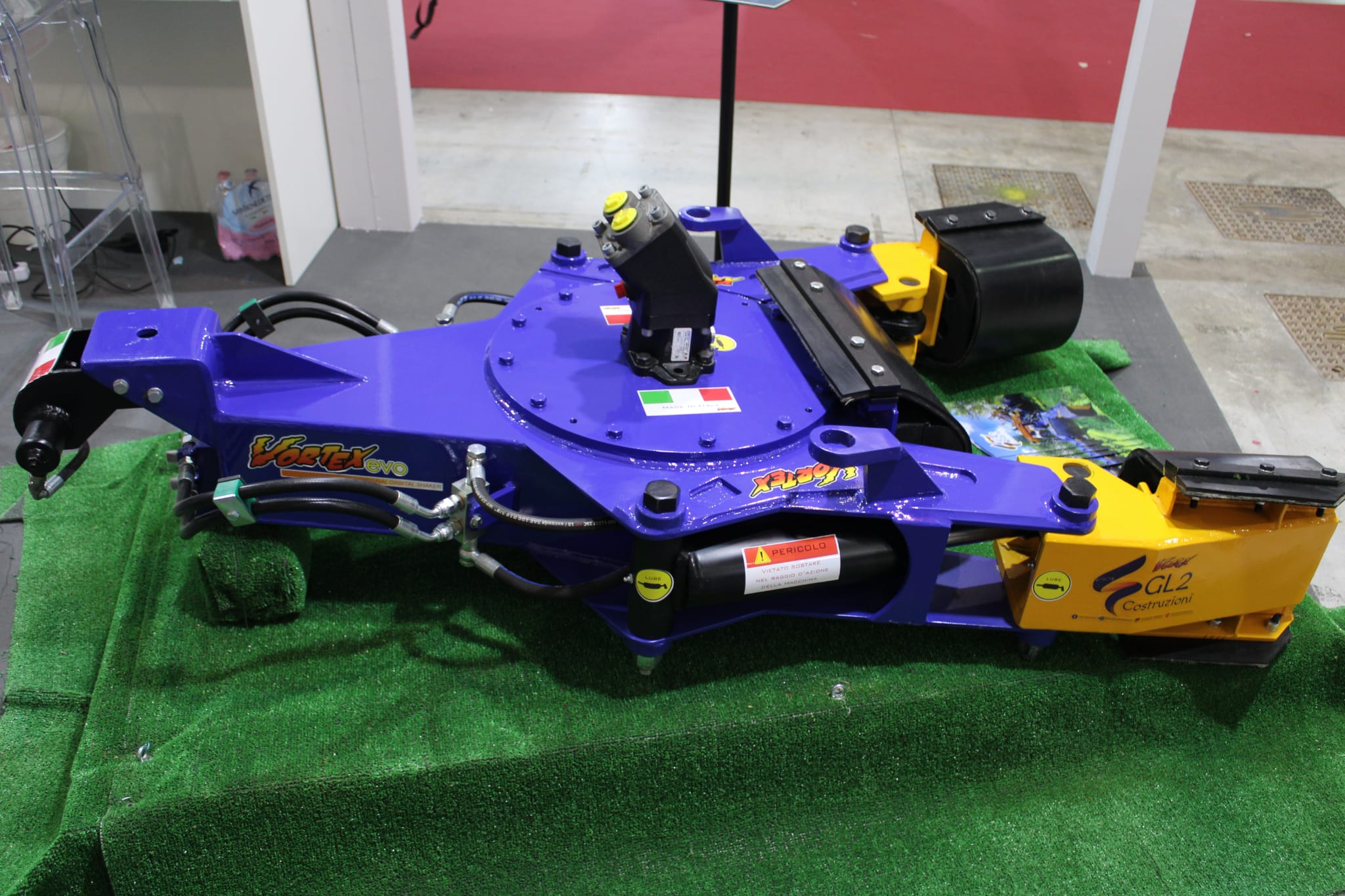

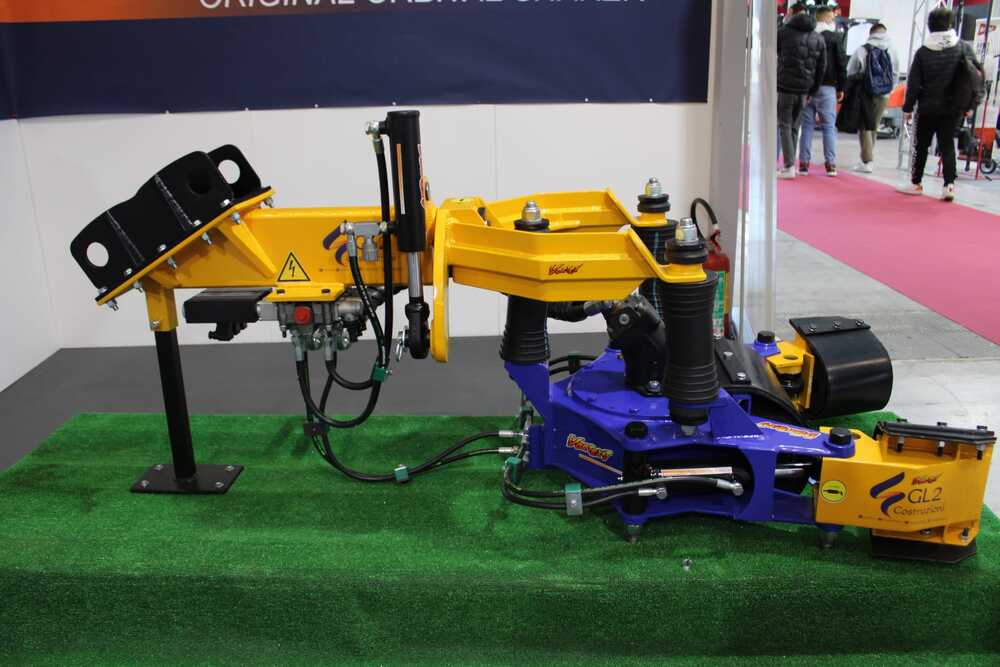

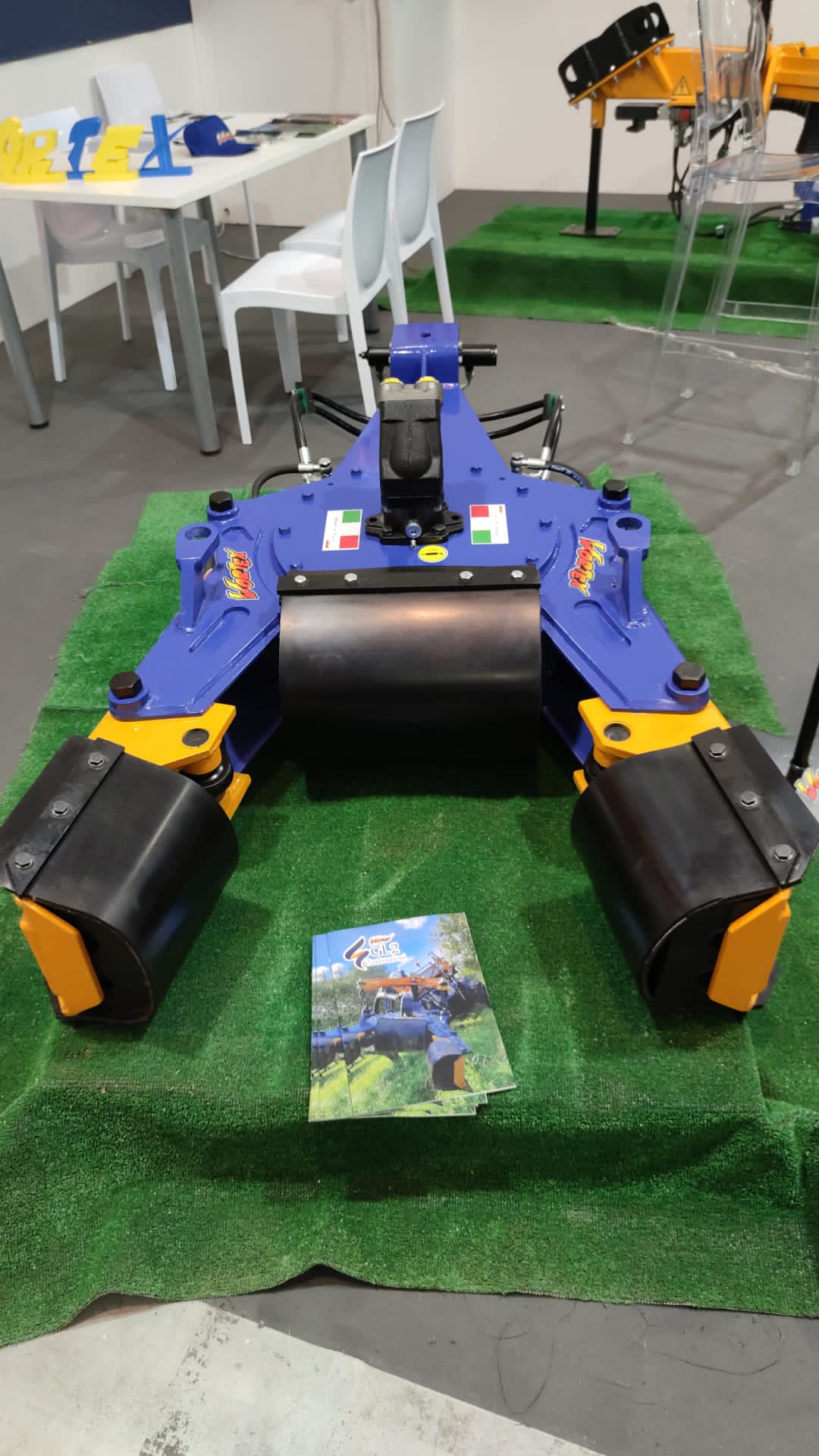

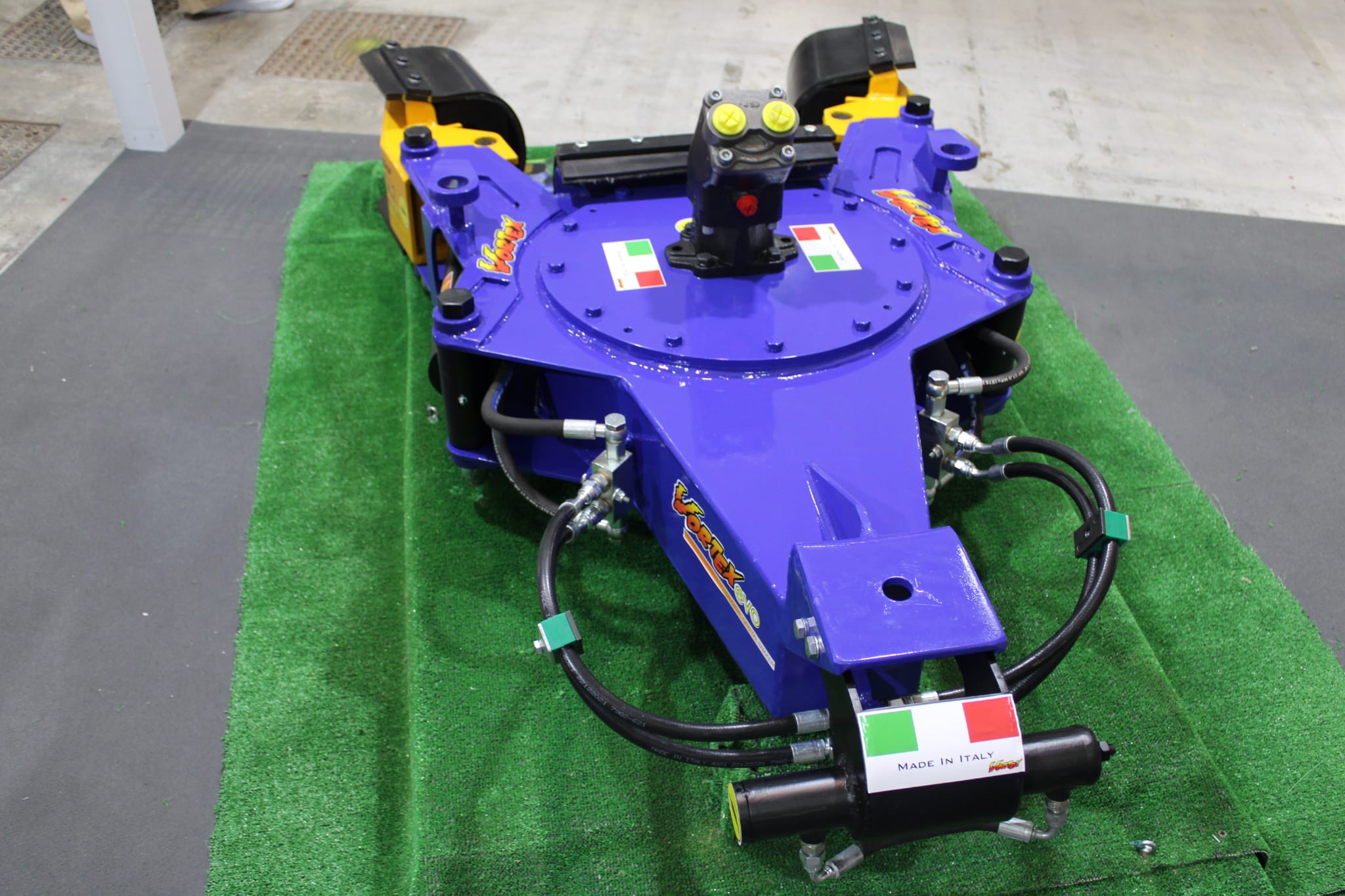

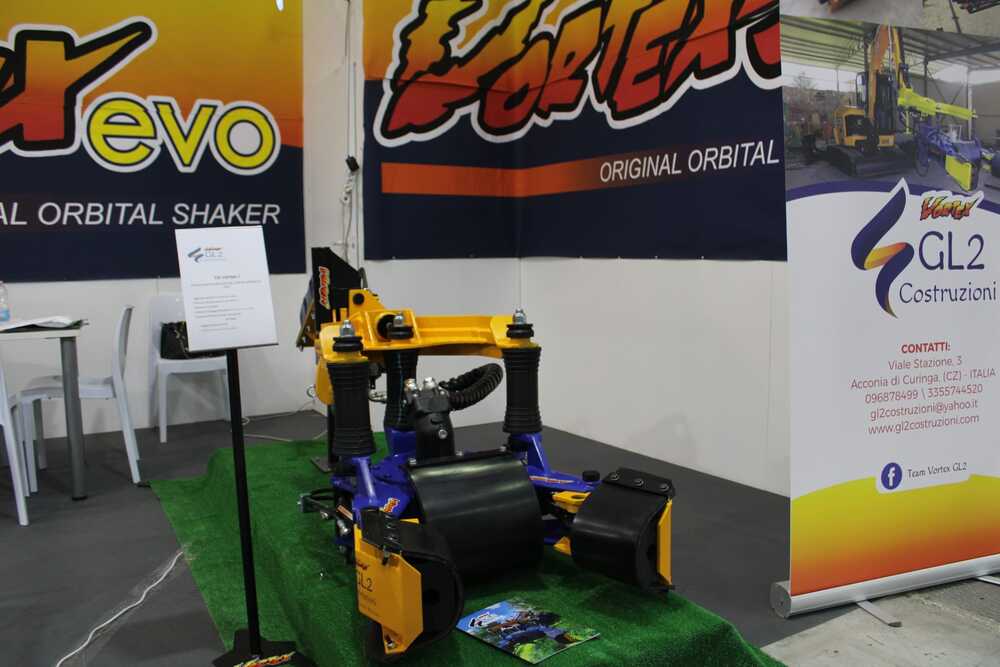

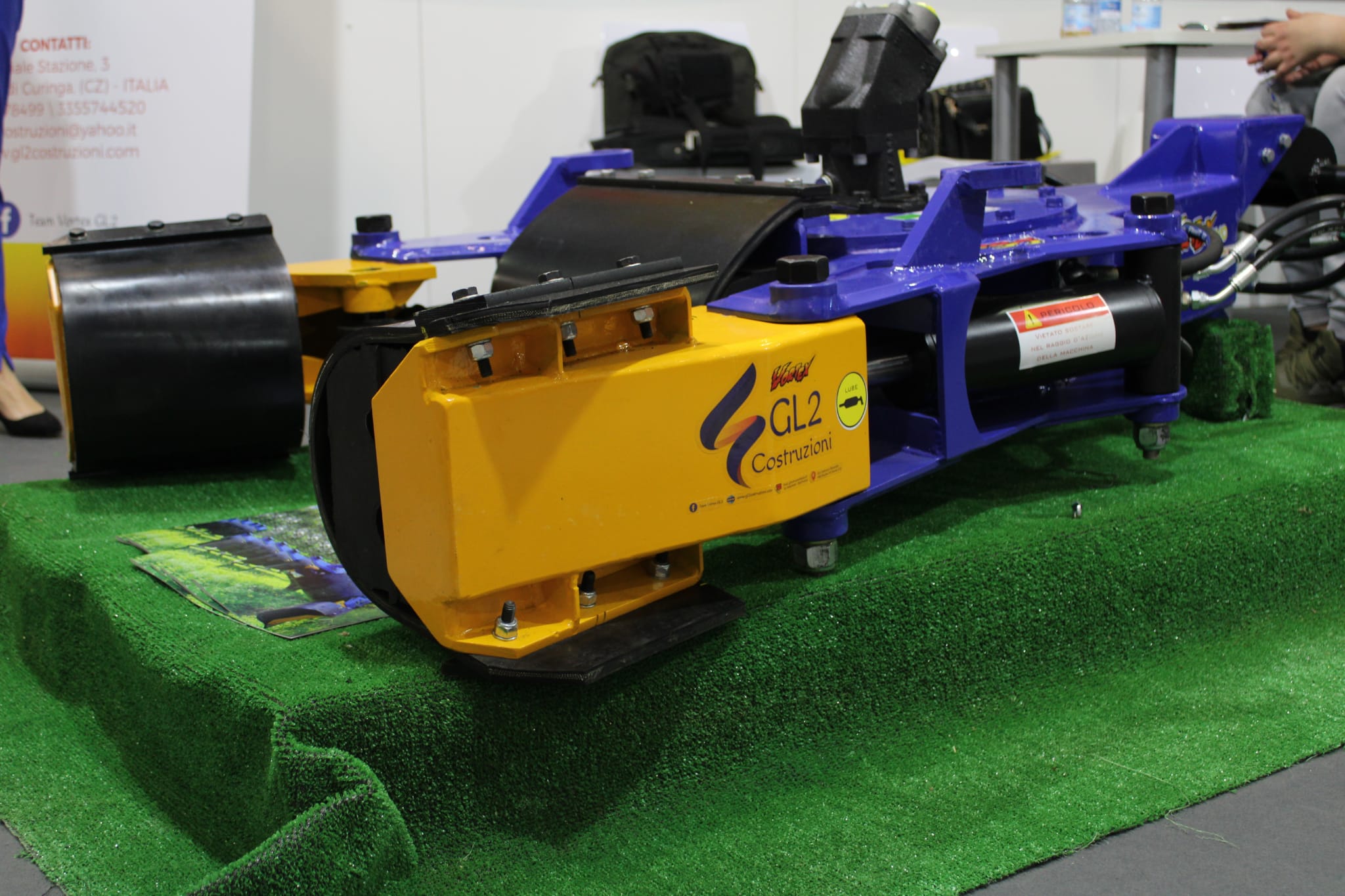

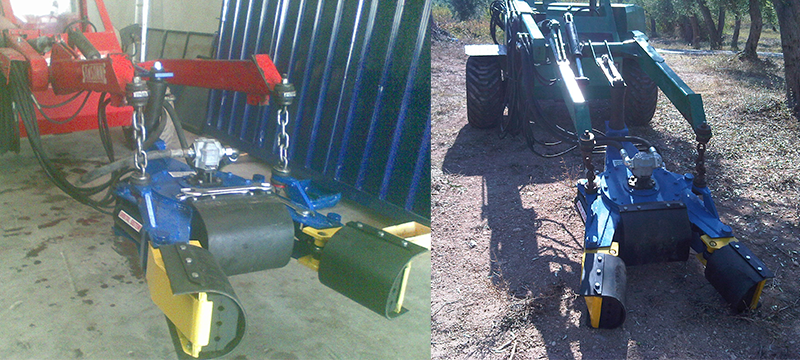

Vortex

Technical Features

  • Weight 345 Kg (Kit Version)

  • External dimensions 1300*800*250 ( Approx )

  • High frequency tilted axis orbital vibration V.E.S

  • Coplanar three-point contact type tightening (PATENTED)

  • Application with customized mounting on kits and self-propelled vehicles from other companies


Vortex evo represents today the harvesting vibrator with the lowest weight-power ratio, the new monolithic reactive SHAKER (monolithic frame responsive) is capable of exceptional performance. Installable on practically any type of machine or kit.


Gallery

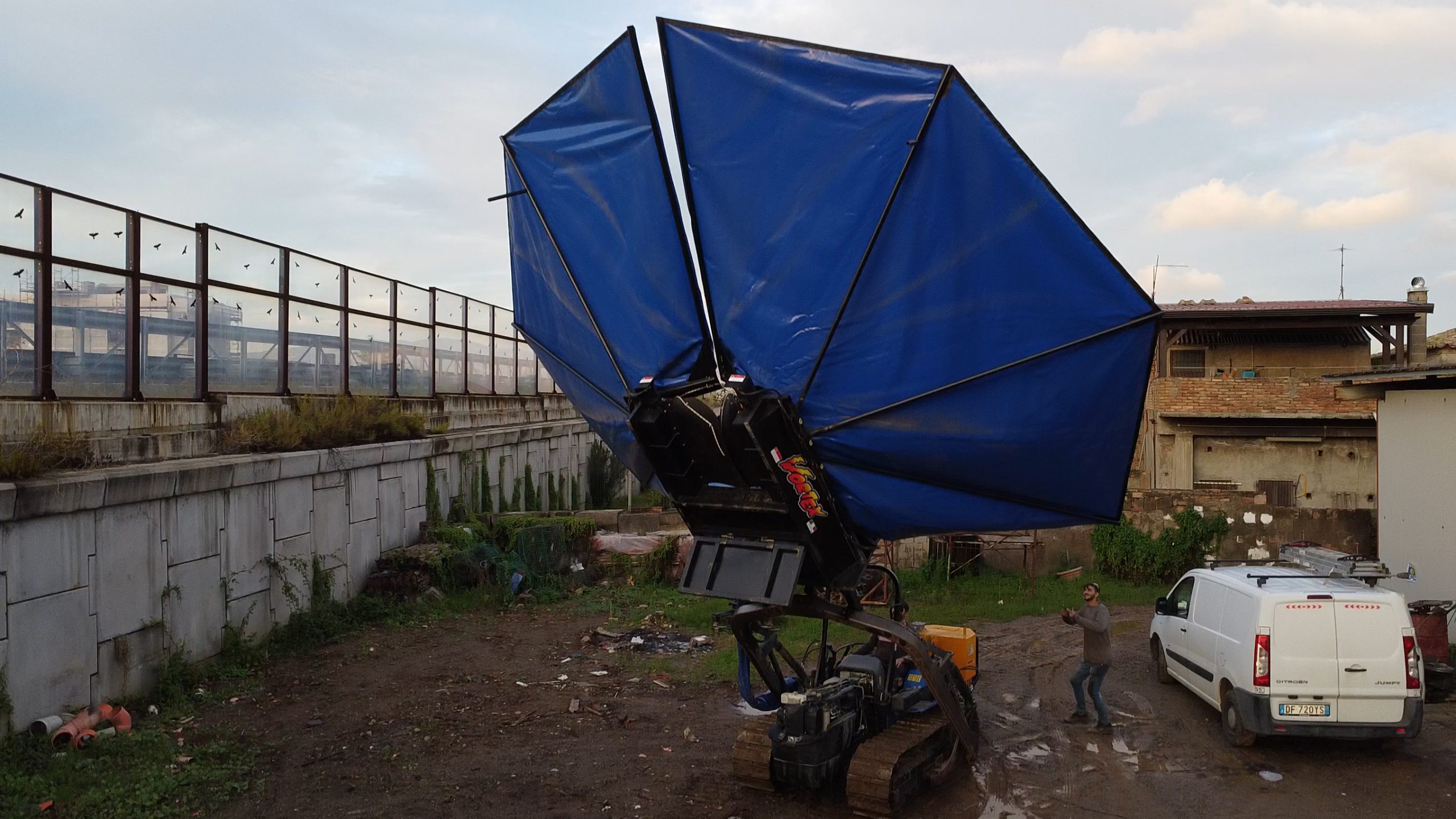

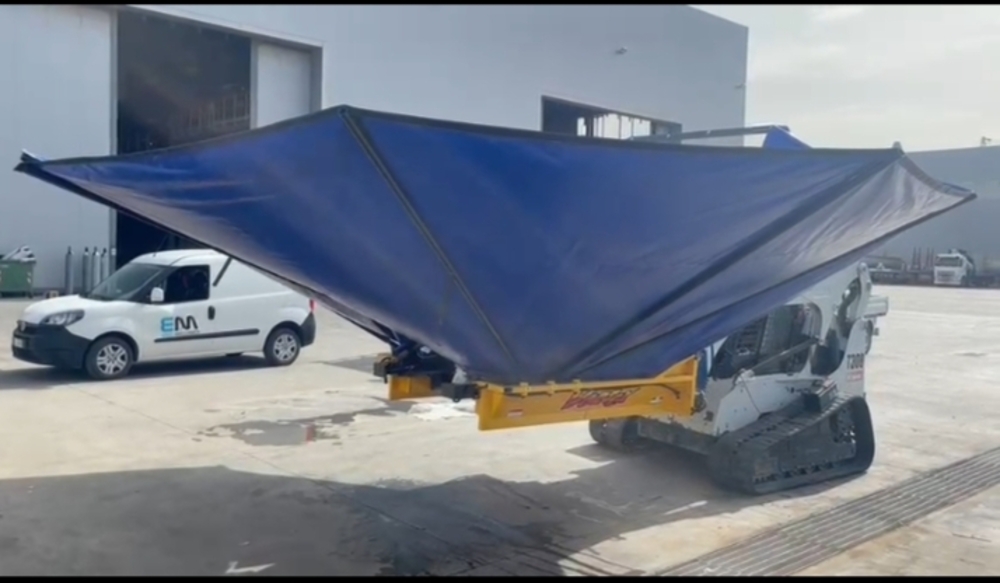

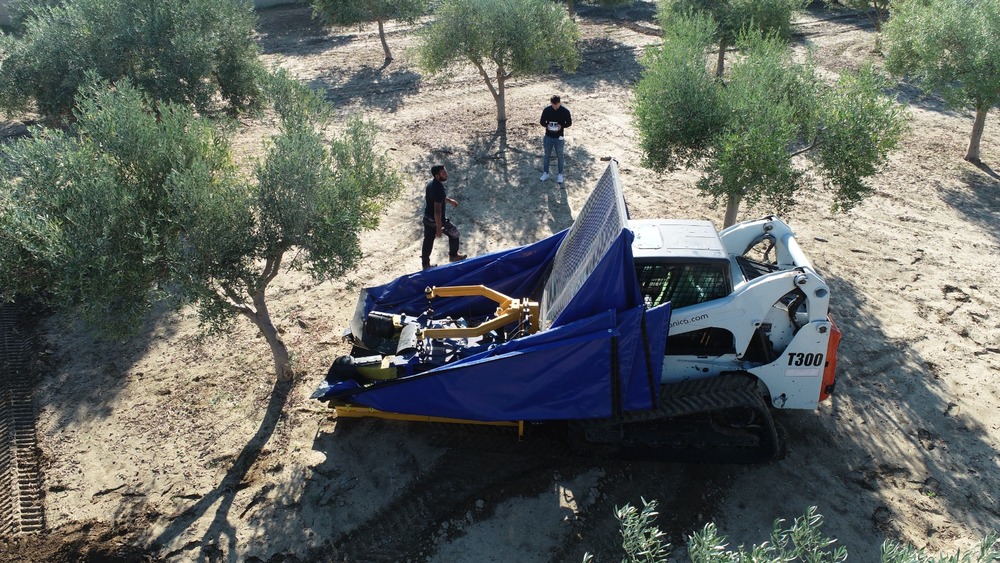

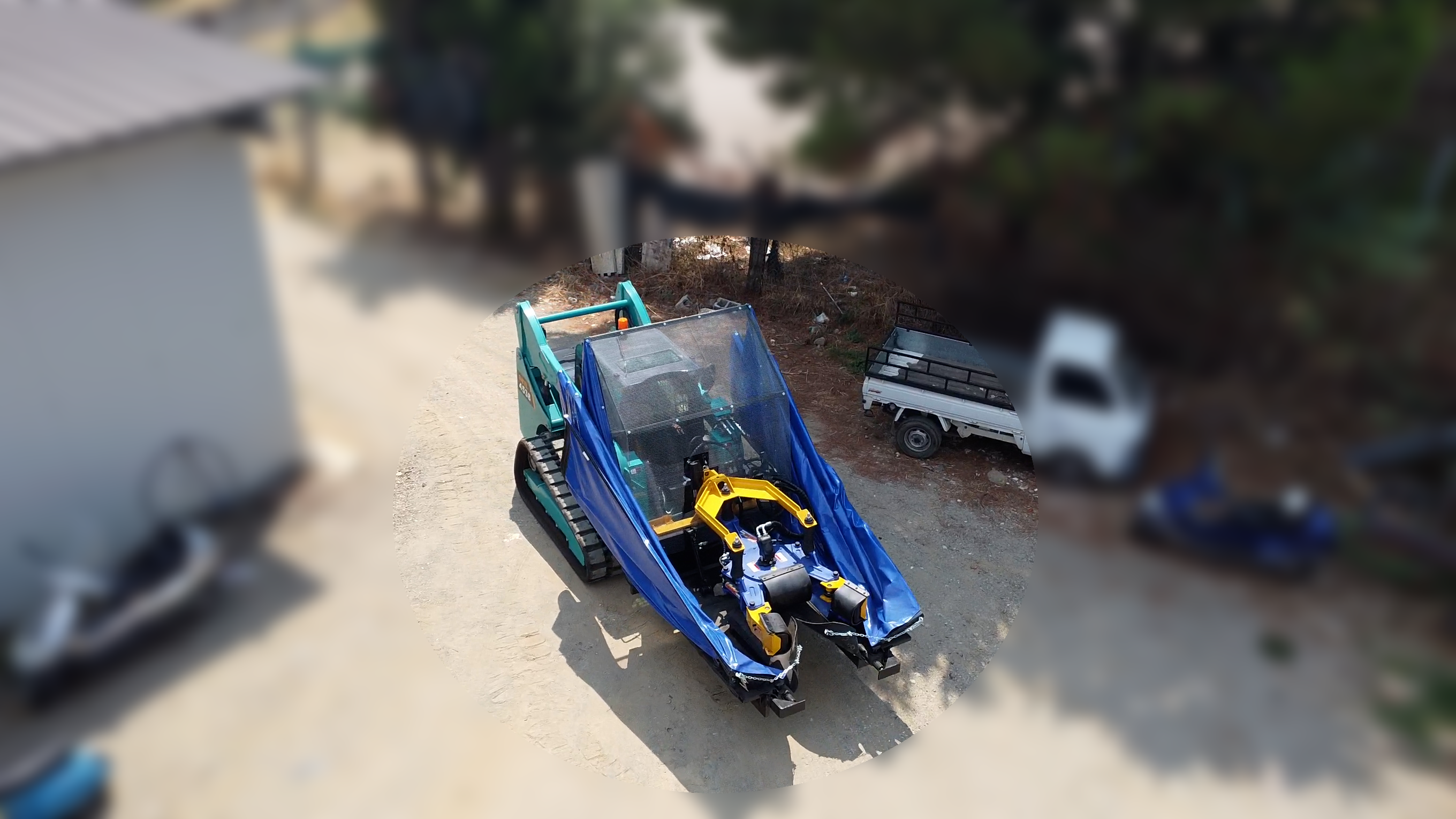

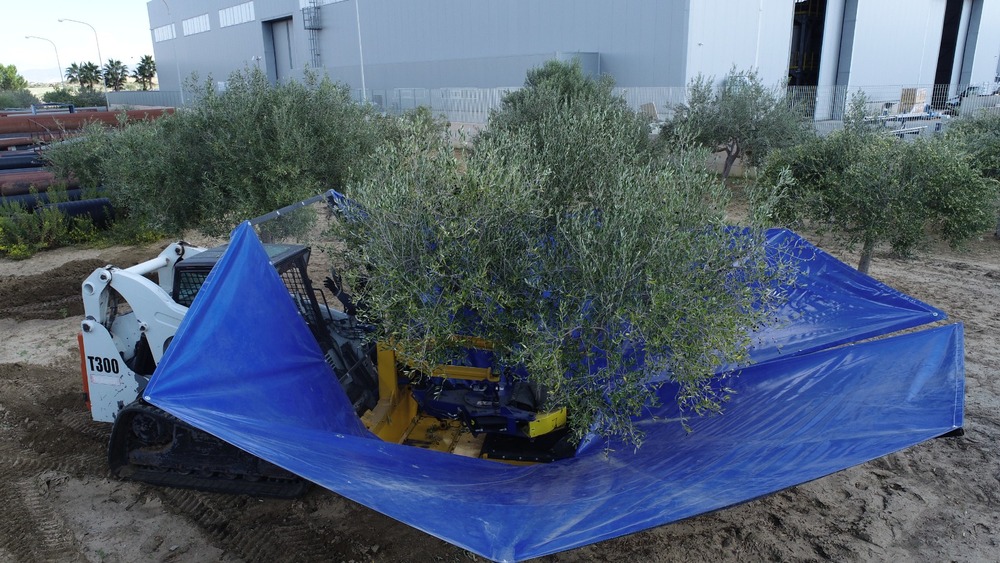

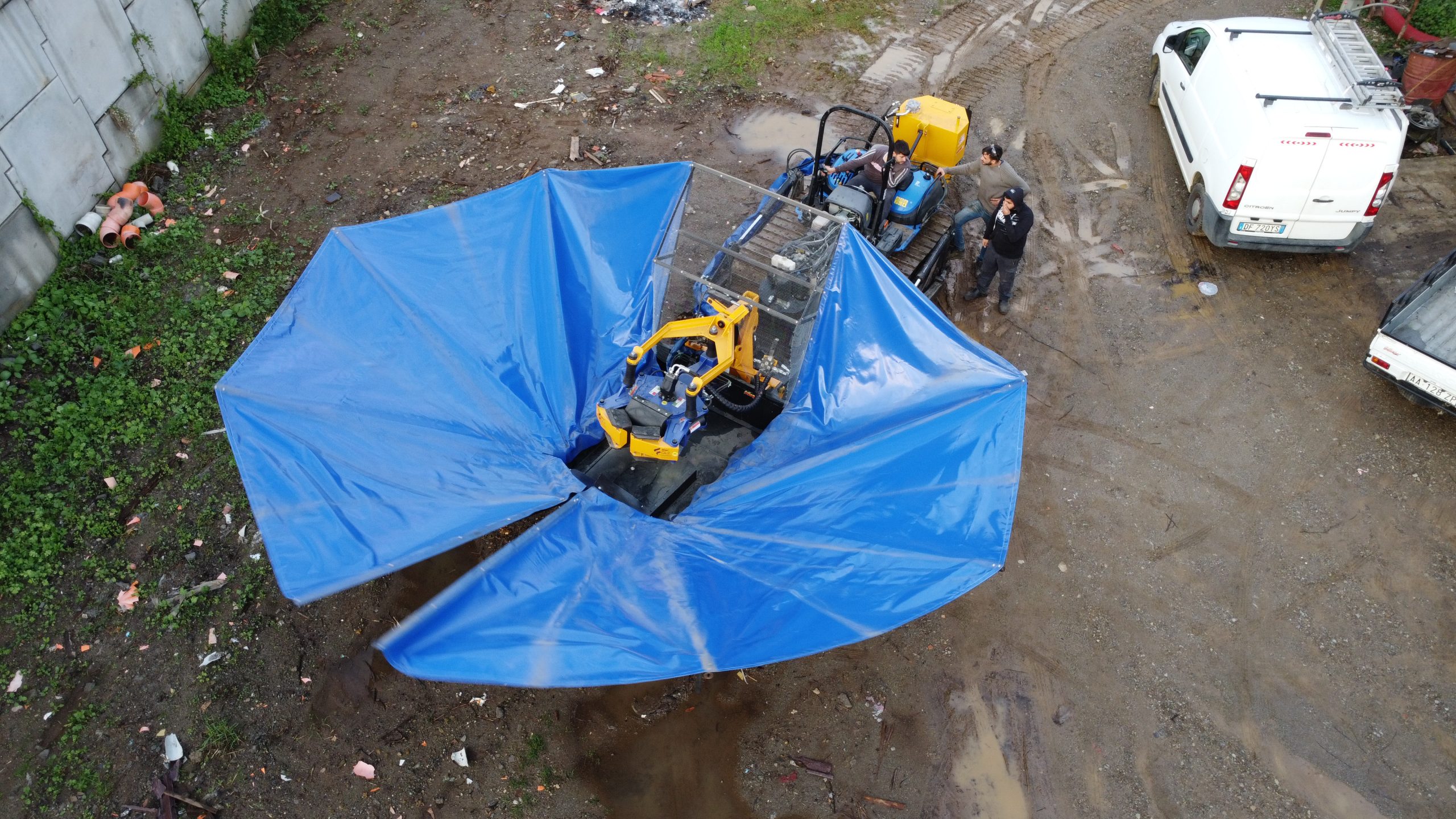

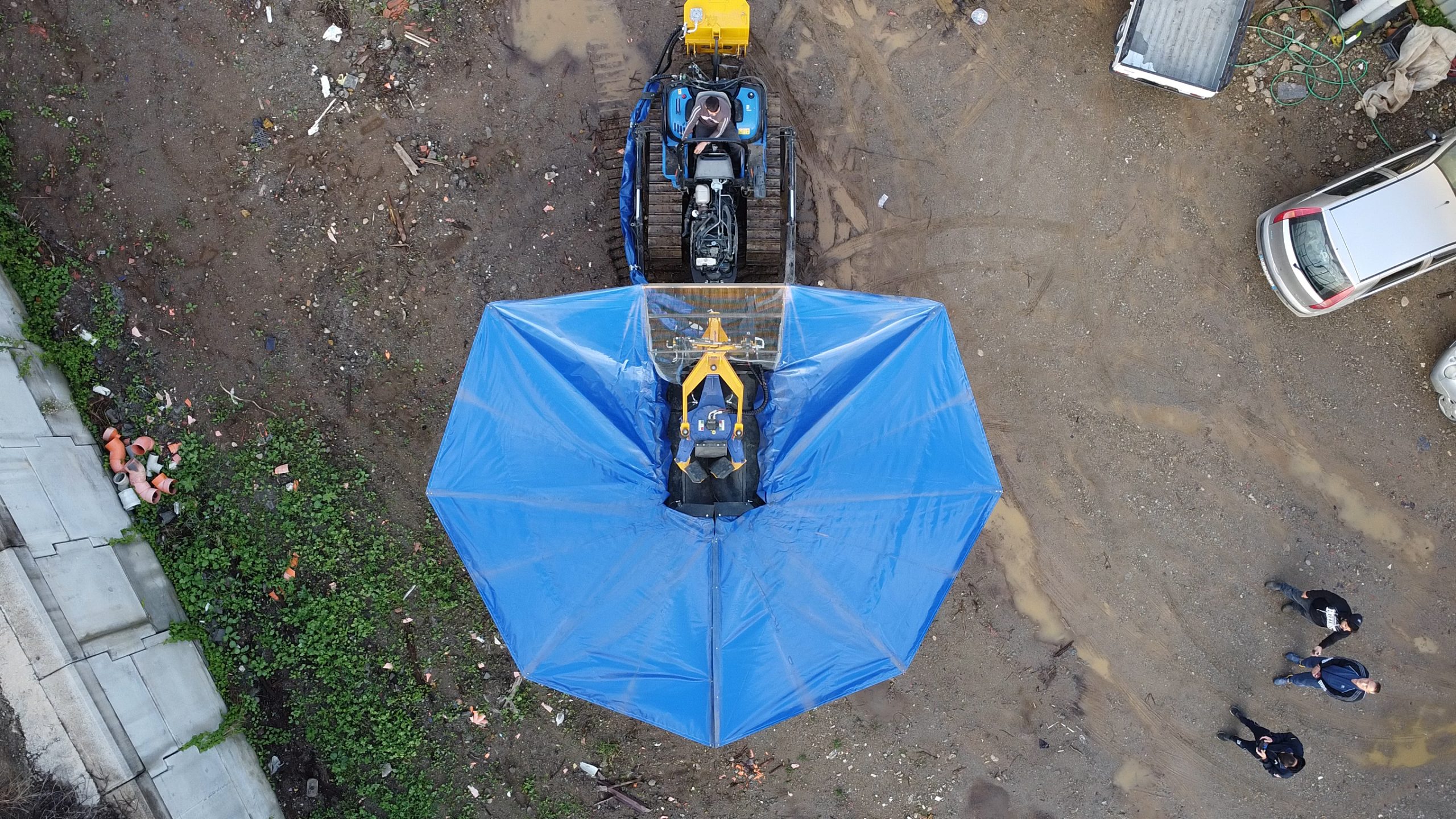

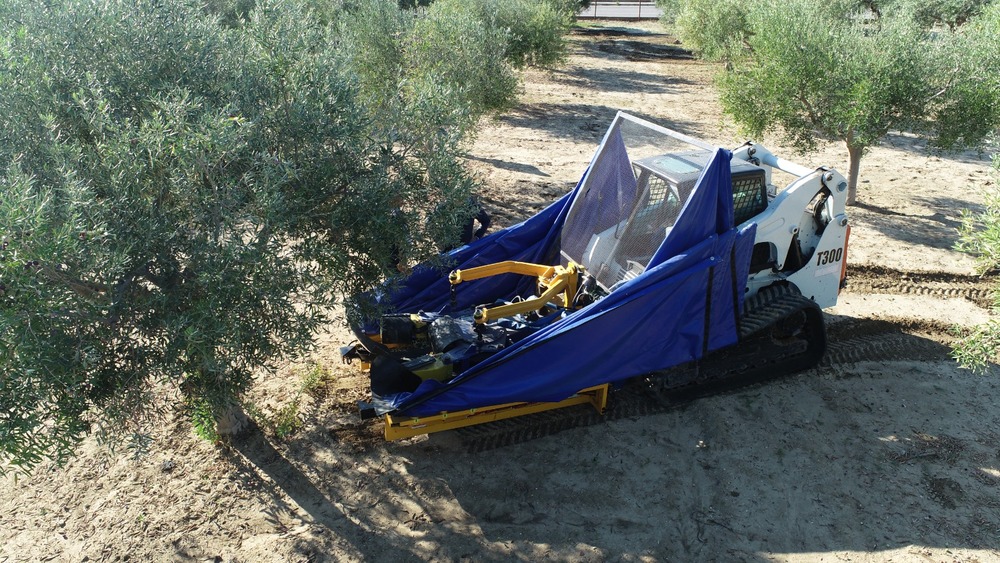

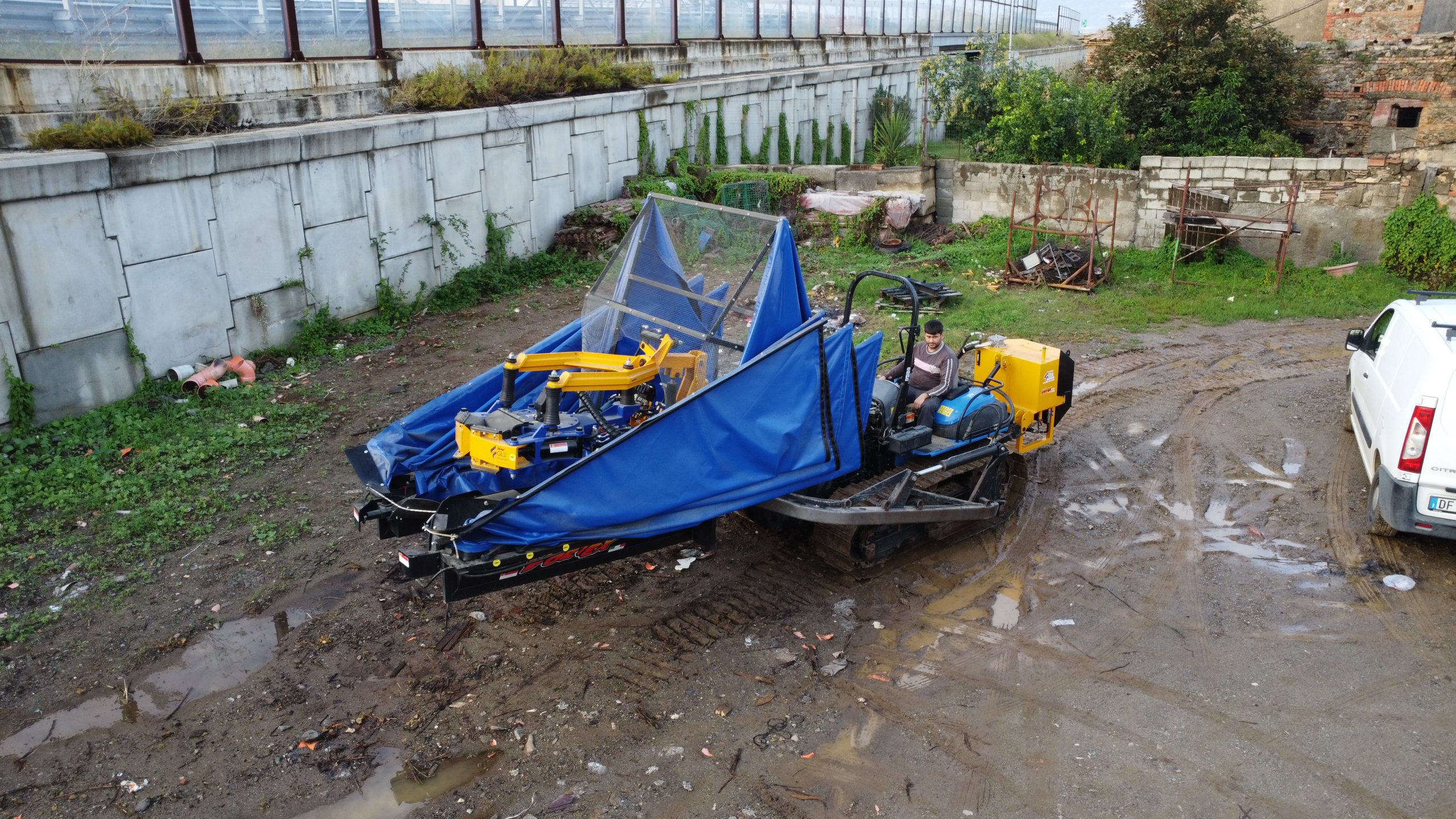

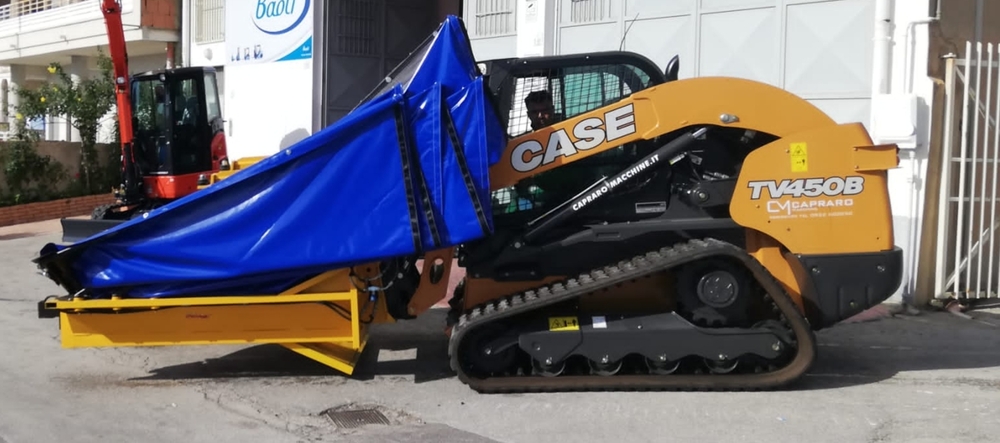

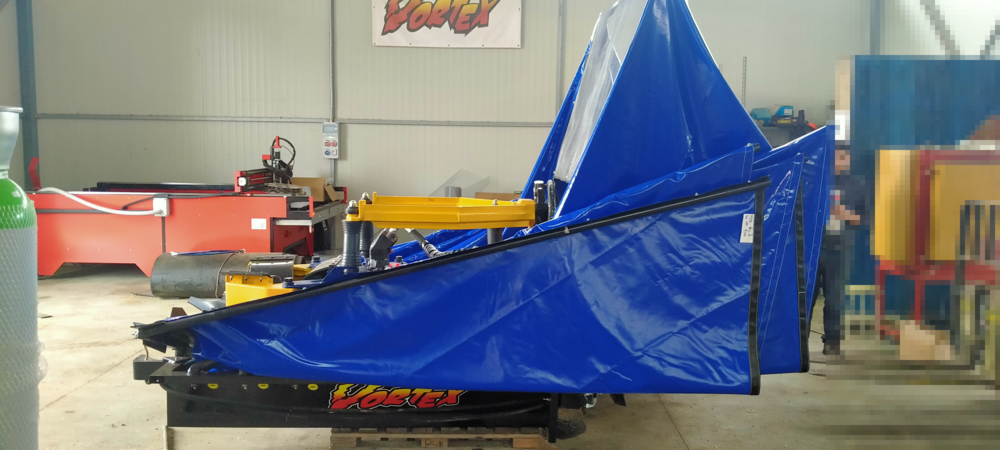

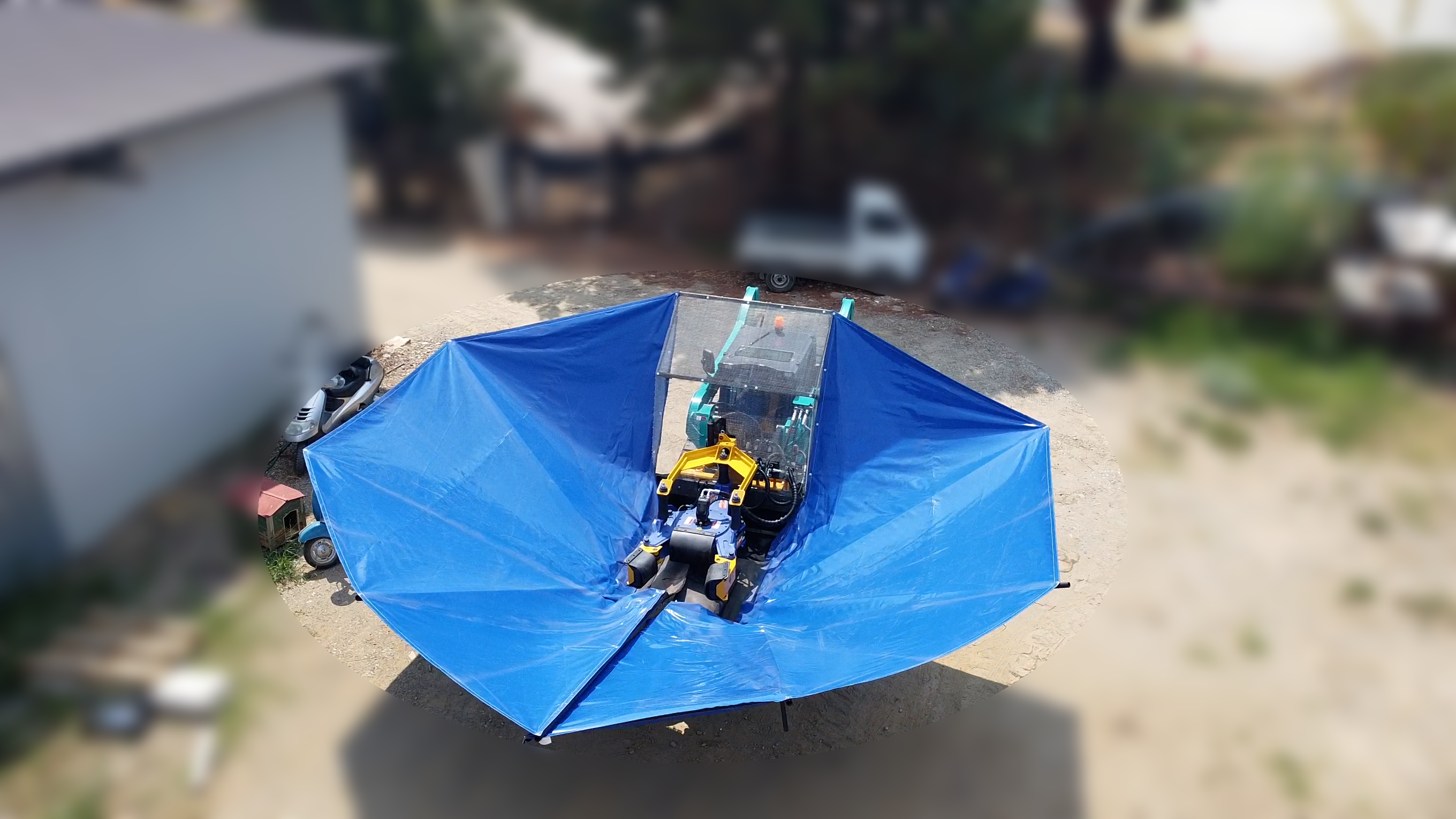

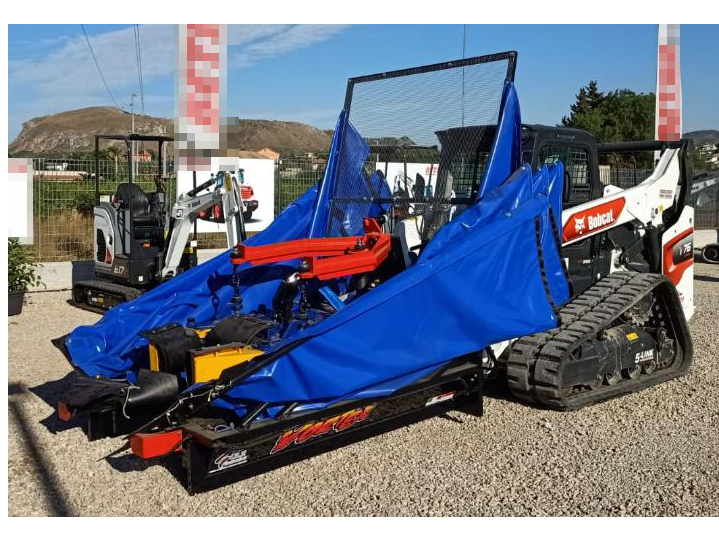

Kit T-Skid Interceptor

Technical Features

  • WEIGHT 700Kg in Vortex Evo trim

  • WEIGHT 500 Kg in Vortex trim

  • Vortex Performance Orbital Caliper

  • Full compatibility for mechanical and hydraulic quick coupling

  • Available winding diameters 6, 7, 8. m


Reverse harvesting umbrella with VORTEX gripper for mini-loaders and skidloaders.


Gallery

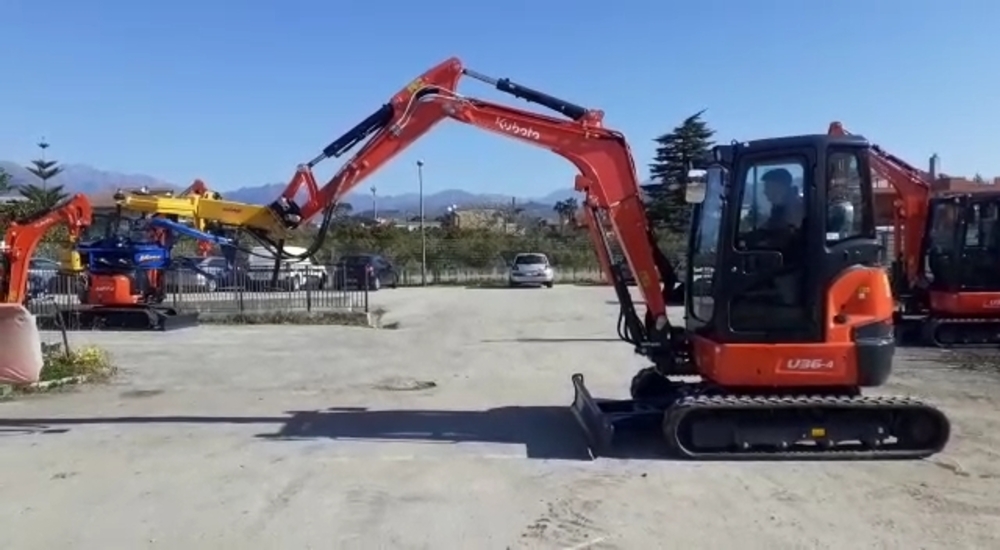

Special Applications

Technical Features


GL2 reserves the right to carry out customized installations on different vehicles, at the customer's request.


Gallery

About Us

GL2 SRL is a dynamic mechanical design and construction company, particularly specialized in machines used in the harvesting of hanging fruit. Formed by the founding partners who still run it, GL2 is an Italian company made up of highly specialized professional figures.

About Us

The professionalism of its staff is reflected with obvious feedback in its products and in all the Ideas put into practice by GL2. Able to profitably use specific, highly sophisticated three-dimensional solid design software, with which the best Vibrating/Shaking Clamp ever, Vortex, has been developed.

About Us

A grapple that benefits from two registered invention patents that since its debut, more than ten years after its release on the market, is still capable of astonishing with its performance, operators in the sector, regardless of the self-propelled vehicle, or agricultural tractor on which it has been installed, especially if from another company. GL2, has set as its objective the development of machines and kits for agricultural tractors to be used in modern harvesting yards, using what the maximum technological expression of the sector does not offer, ITS OWN IDEAS..
